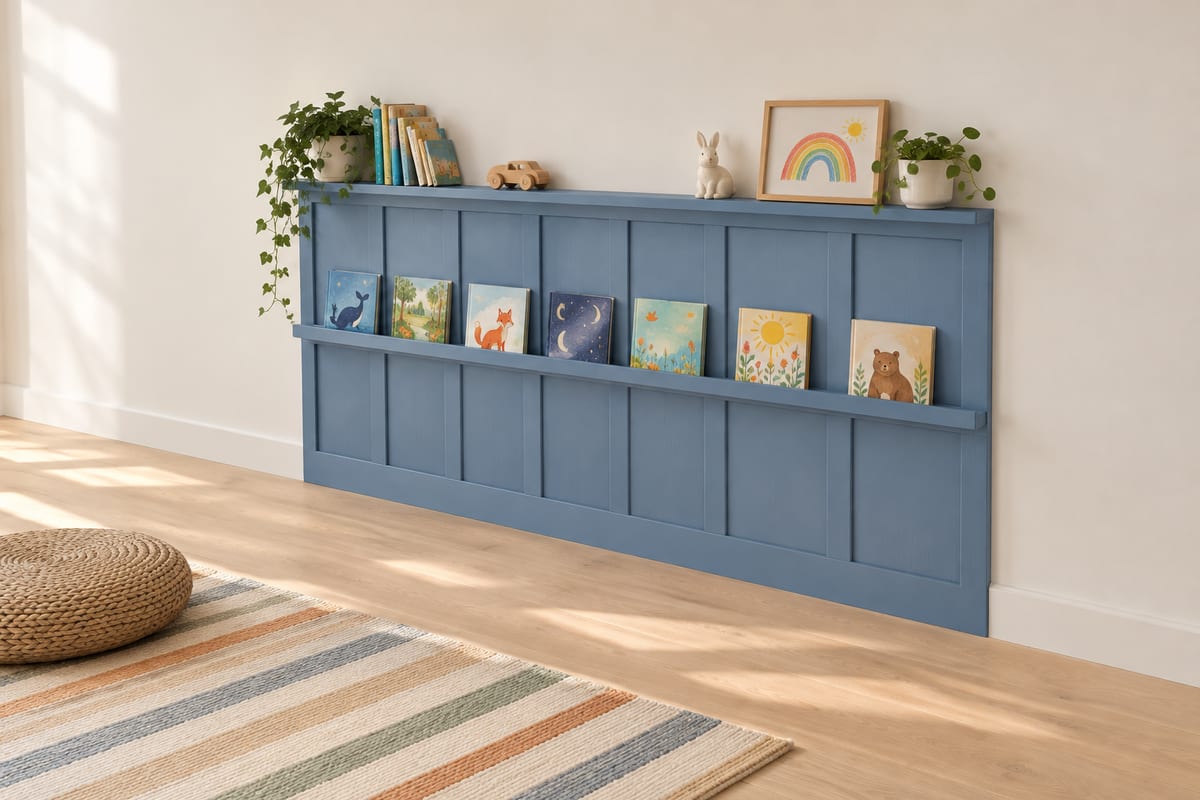

Denim board-and-batten book wall
A grid board-and-batten wall in denim blue, 1.5m high, whose mid and top rails each carry a lipped book ledge: almost 7 metres of face-out shelf at a five-year-old's reach and a parent's, standing only 140mm off the wall so it takes no floor. The MDF skin and battens below take the scuffs a kids' room hands out, and wipe clean.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 3400 x 126 x 1552 mm133 7/8" x 4 15/16" x 61 1/8"
- Parts to cut
- 35
- Build steps
- 21
- Boards
- 4
- Sheets
- 4
- Solid wood
- 8.6 bd ft
- Weight
- 56.8 kg125 lb
Materials
- MDF
- Poplar (paint grade)
Finish
- Paint - denim blue, satin
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Sandpaper
- Brush
Hardware and fittings
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
Cut list
The first 3 of 26 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Skirting | 1700 x 140 x 1866 15/16" x 5 1/2" x 11/16" | MDF |
| B | 2 | Mid rail | 1700 x 90 x 1866 15/16" x 3 9/16" x 11/16" | MDF |
| C | 2 | Top rail | 1700 x 90 x 1866 15/16" x 3 9/16" x 11/16" | MDF |
| +29 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 35 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 21 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

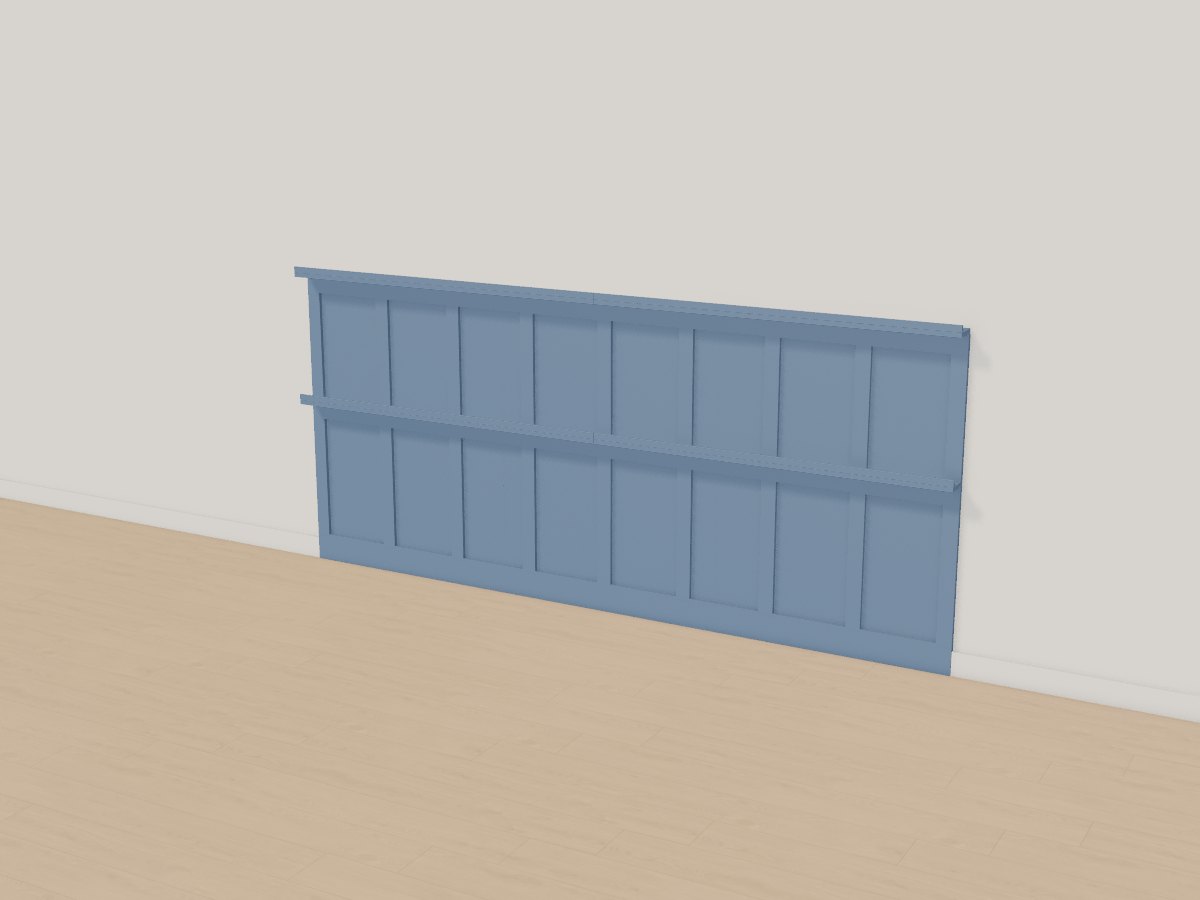

The 3D model
