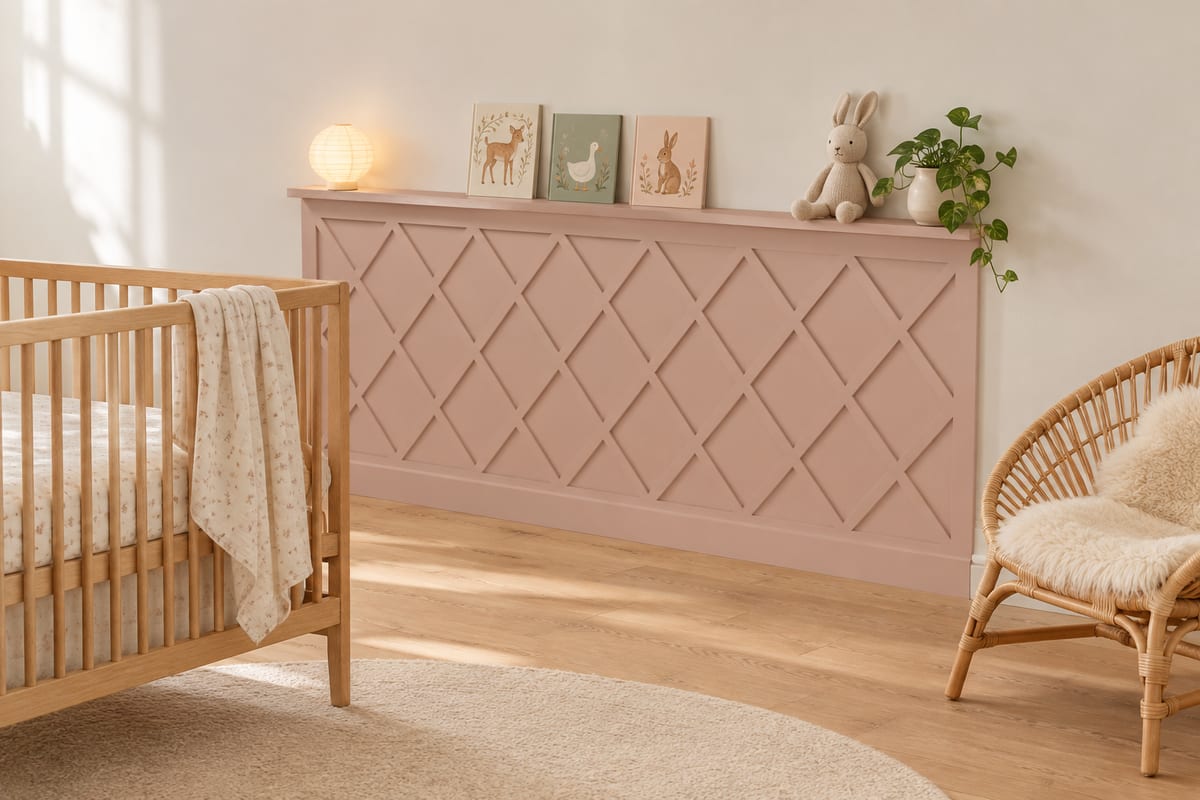

Clay-pink diamond lattice nursery wall
A nursery wainscot of diamond lattice: 44mm poplar strips run on the diagonal and half-lapped where they cross, framed by a deep bottom rail, end stiles and a top rail, everything in soft clay pink to 1.3m. The lipped cap ledge on top sits above a toddler's reach, so the baby monitor, night light and favourite books live there instead of on a side table, and the painted MDF below wipes clean.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 3000 x 115 x 1347 mm118 1/8" x 4 1/2" x 53 1/16"
- Parts to cut
- 29
- Build steps
- 22
- Boards
- 8
- Sheets
- 4
- Solid wood
- 10.1 bd ft
- Weight
- 40.1 kg88 lb
Materials
- Poplar (paint grade)
- MDF
Finish
- Paint - clay pink, satin
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Drill
- Dowel jig
- Sandpaper
- Brush
Hardware and fittings
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
Cut list
The first 3 of 12 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Bottom rail | 1500 x 150 x 1859 1/16" x 5 7/8" x 11/16" | MDF |
| B | 2 | Top rail | 1500 x 90 x 1859 1/16" x 3 9/16" x 11/16" | MDF |
| C | 3 | Wall skin | 1300 x 1000 x 651 3/16" x 39 3/8" x 1/4" | MDF |
| +22 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 29 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 22 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

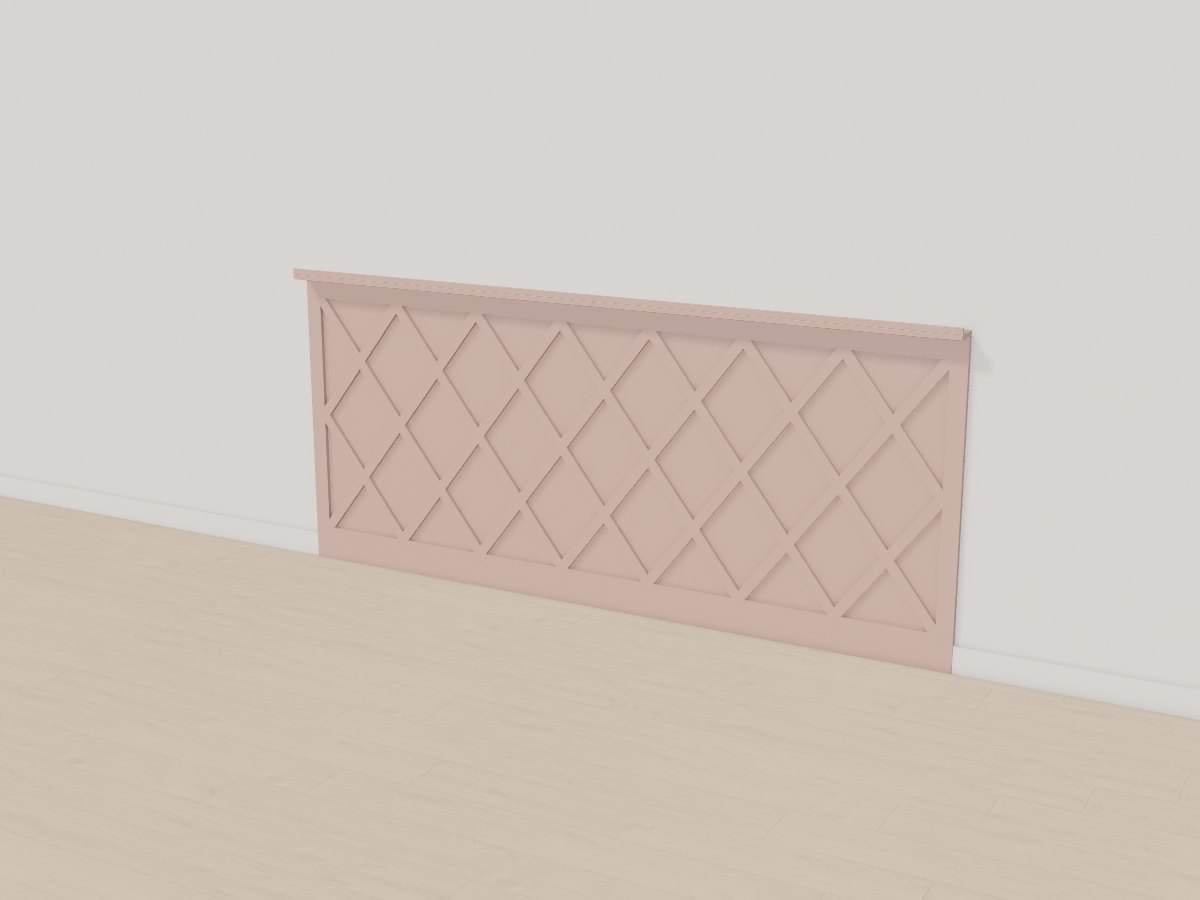

The 3D model
