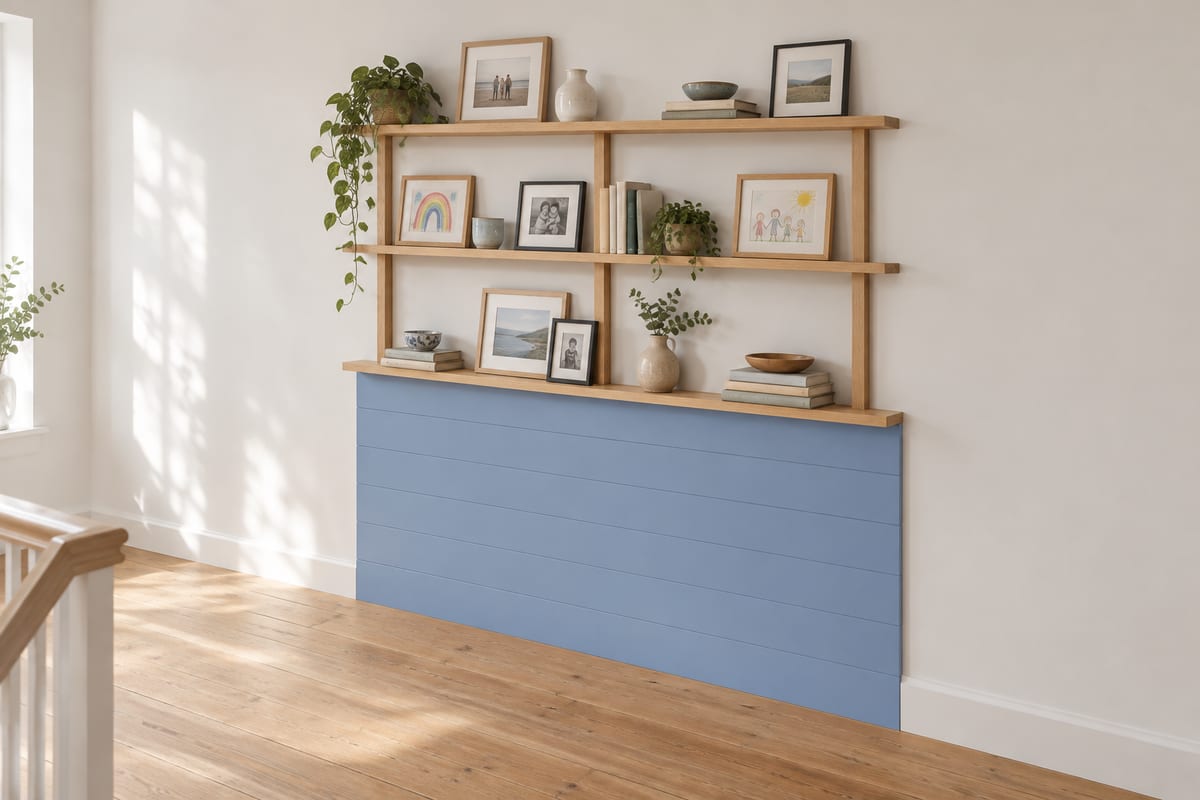

Cornflower stair-landing gallery wall
A stair-landing wall that becomes the family photo gallery: cornflower-blue shiplap to dado height under an oiled oak cap, and above it three oak standards carrying three lipped picture ledges and a top rail. Frames lean on the ledges, so the gallery can be rearranged every school year without a single new nail hole, and nothing stands more than 95mm into a tight landing.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2600 x 95 x 2463 mm102 3/8" x 3 3/4" x 96 15/16"
- Parts to cut
- 32
- Build steps
- 23
- Boards
- 12
- Sheets
- 3
- Solid wood
- 14.3 bd ft
- Weight
- 48.7 kg107 lb
Materials
- MDF
- White oak
- Pine (eastern white)
Finish
- Paint - cornflower blue, satin
- Finishing oil - Hardwax oil, matt
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Chisel
- Sandpaper
- Brush
Hardware and fittings
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
Cut list
The first 3 of 13 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Skirting | 1300 x 150 x 1851 3/16" x 5 7/8" x 11/16" | MDF |
| B | 2 | Shiplap board 1 | 1300 x 140 x 1251 3/16" x 5 1/2" x 1/2" | MDF |
| C | 2 | Shiplap board 2 | 1300 x 140 x 1251 3/16" x 5 1/2" x 1/2" | MDF |
| +26 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 32 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 23 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

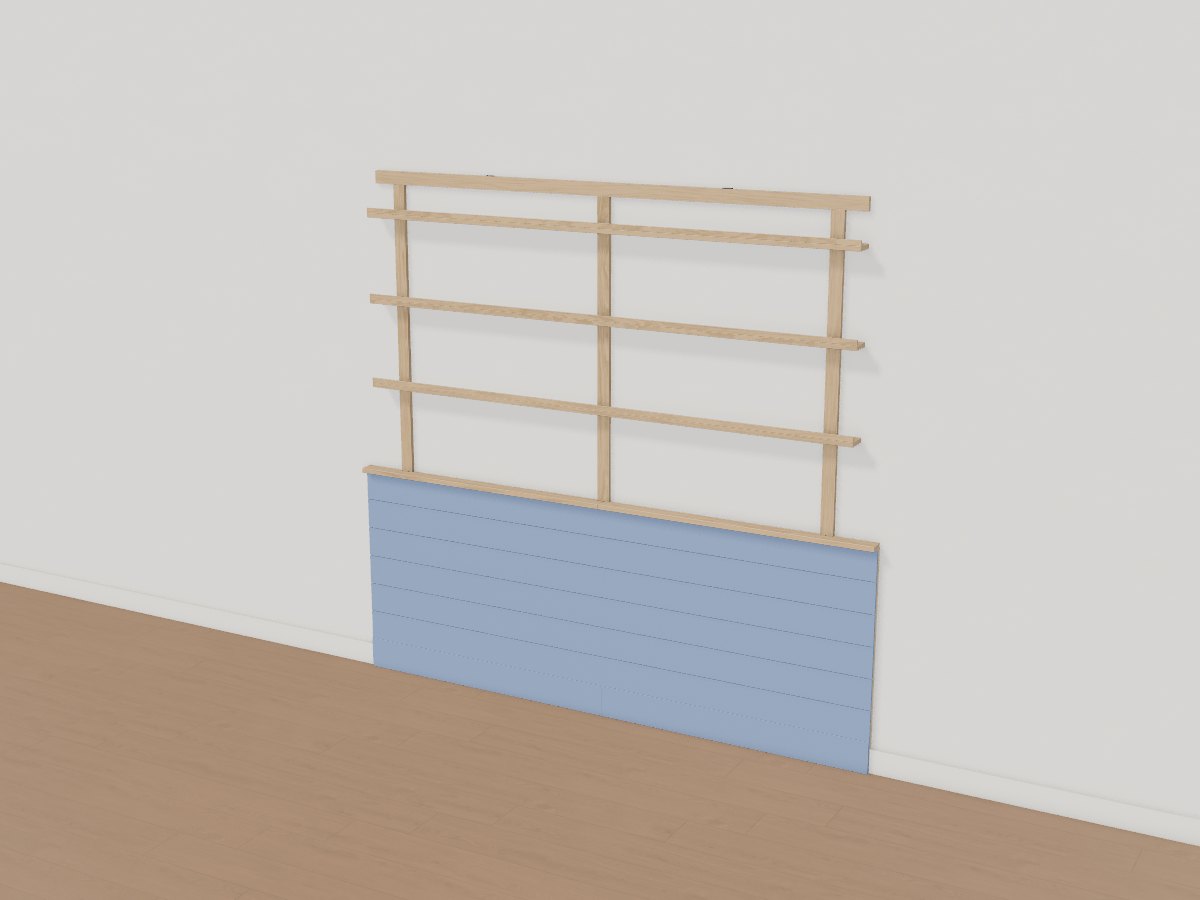

The 3D model
