Cornflower slim rolling pantry

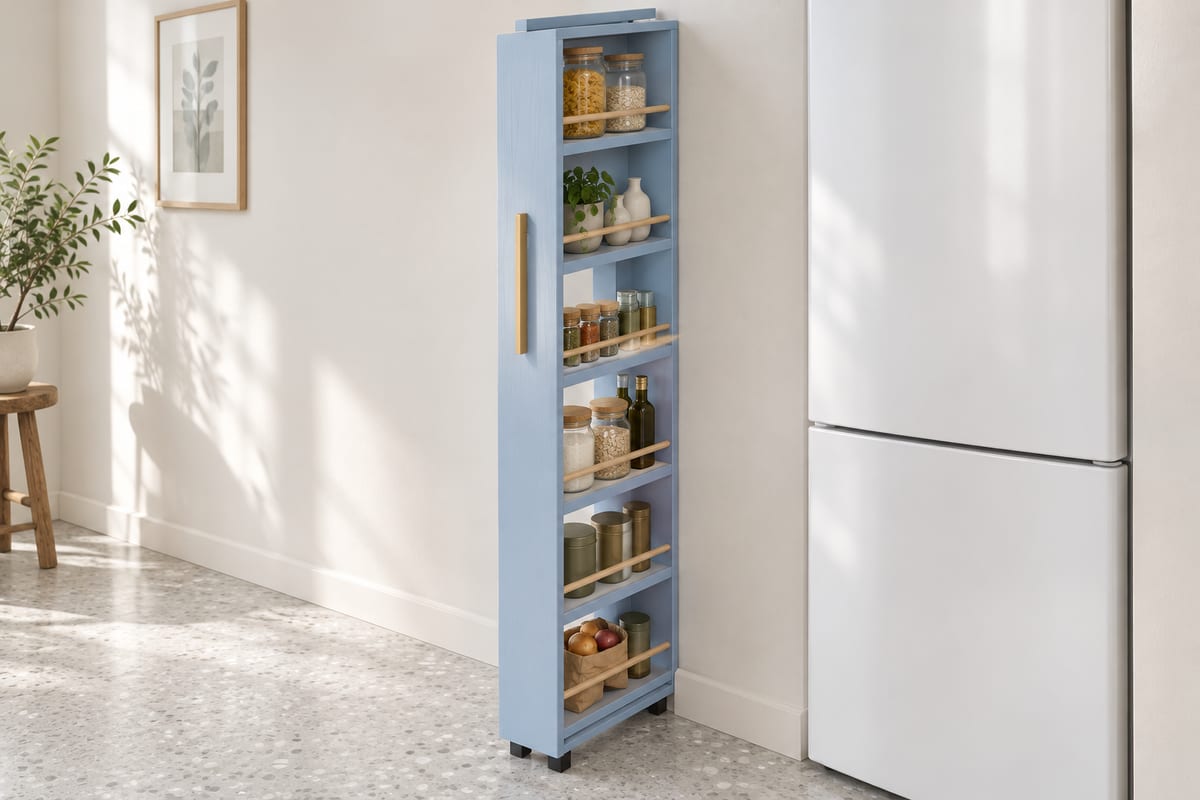

A pull-out pantry only 170mm wide that lives in the dead gap between the fridge and the wall: pull the brass handle and 560mm of shelves roll out on quiet castors, six levels of tins, jars and spices with maple dowel galleries so nothing slides off and a guide pin running in a channel overhead so it cannot tip. Pushed home, only a slim cornflower-blue panel shows; it adds a whole larder cupboard to a kitchen with no cupboard to spare.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

170 x 610 x 1734 mm6 11/16" x 24" x 68 1/4"

Parts to cut

21

Build steps

17

Boards

2

Sheets

1

Solid wood

0.7 bd ft

Weight

18.1 kg40 lb

Materials

• Hard maple
• Birch plywood

Finish

• Paint - cornflower blue, satin
• Finishing oil - Hardwax oil, matt

Tools

• Saw
• Square
• Tape
• Router
• Drill
• Clamps
• Sandpaper
• Brush

Hardware and fittings

• 1 x Brushed brass bar pull, 320mm centres
• 1 x Anti-tip top guide for a pull-out: aluminium U-channel 600mm with a nylon guide pin
• 4 x Low-profile swivel castor, 40mm soft wheel, plate fixing

Cut list

The first 3 of 5 lines, in millimetres (inches below), finished size including joint allowances.

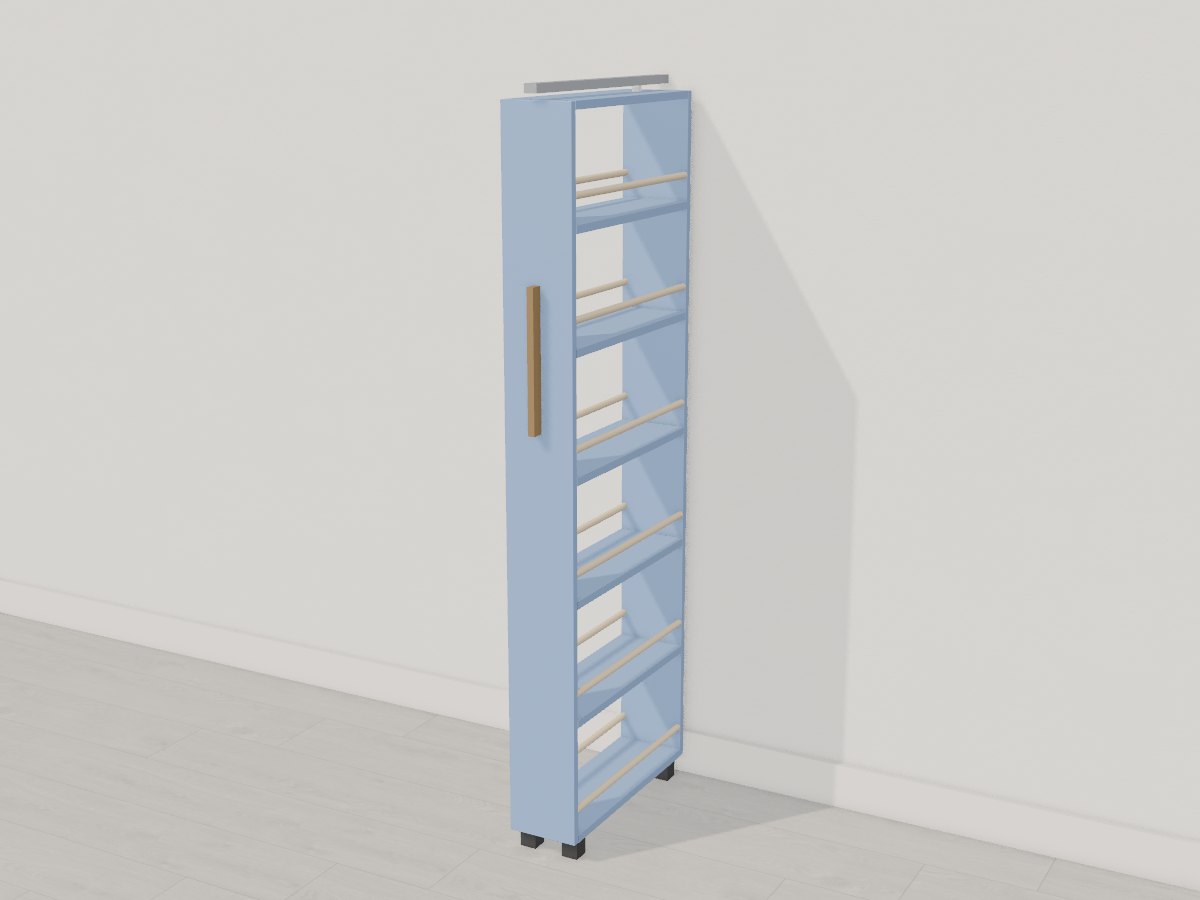

The 3D model
