Claret china hutch

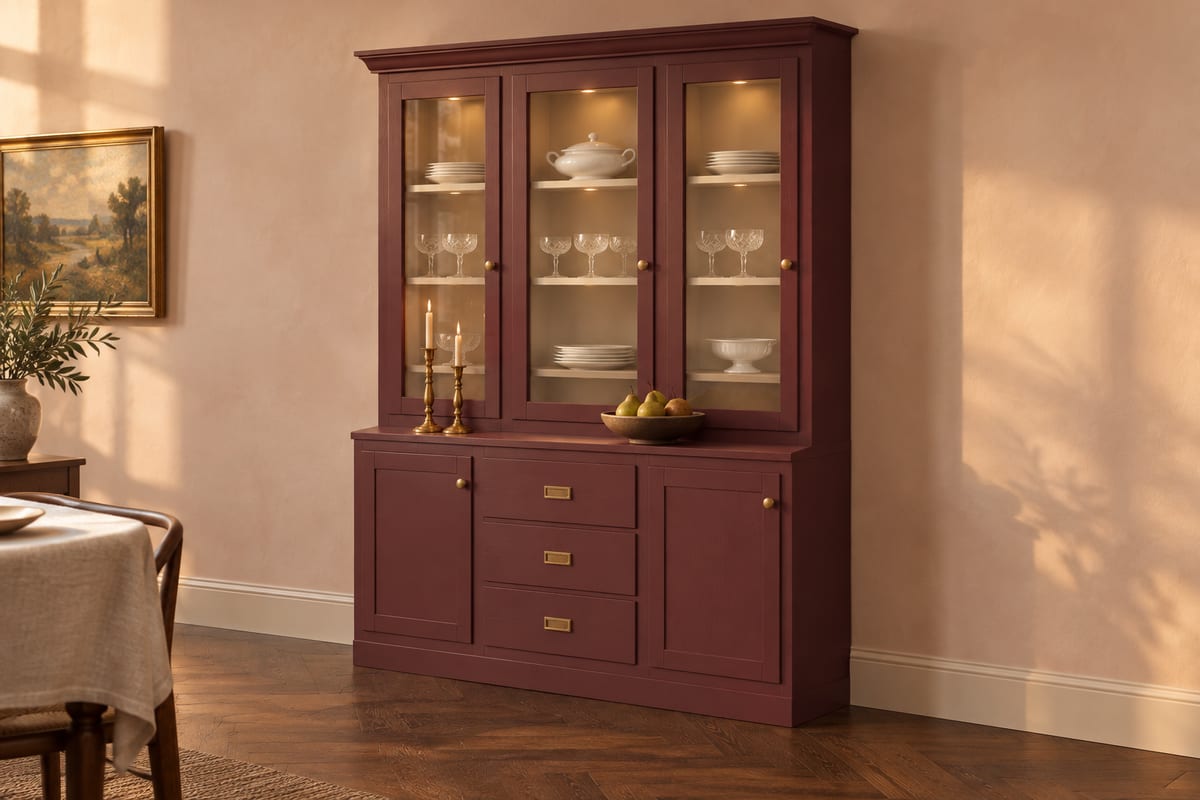

A freestanding china hutch in deep claret red: glass-fronted cabinets lit inside from top to bottom, standing back on a deeper base of Shaker cupboards and a bank of silverware drawers, under a cove crown with brass knobs and cup pulls.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

1726 x 531 x 2250 mm67 15/16" x 20 7/8" x 88 9/16"

Parts to cut

118

Build steps

113

Boards

13

Sheets

9

Solid wood

17.9 bd ft

Weight

195.2 kg430 lb

Materials

• Birch plywood
• Poplar (paint grade)
• MDF

Finish

• Paint - deep claret, satin

Tools

• Saw
• Square
• Tape
• Chisel
• Clamps
• Router
• Table saw
• Drill
• Pocket-hole jig
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 1 x Anti-tip furniture wall bracket, steel, with stud screws
• 13 x Concealed face-frame hinge, partial overlay
• 5 x Round knob, 30mm, brushed brass
• 3 x Plug-in LED strip kit, 12V, warm white 2700K
• 2 x Toughened glass panel, 4mm
• 6 x Side-mount drawer slide, 450mm
• 3 x Cup pull, 96mm centres, brushed brass
• 1 x Toughened glass panel, 4mm
• 1 x Cove crown moulding, 90mm

Cut list

The first 3 of 83 lines, in millimetres (inches below), finished size including joint allowances.

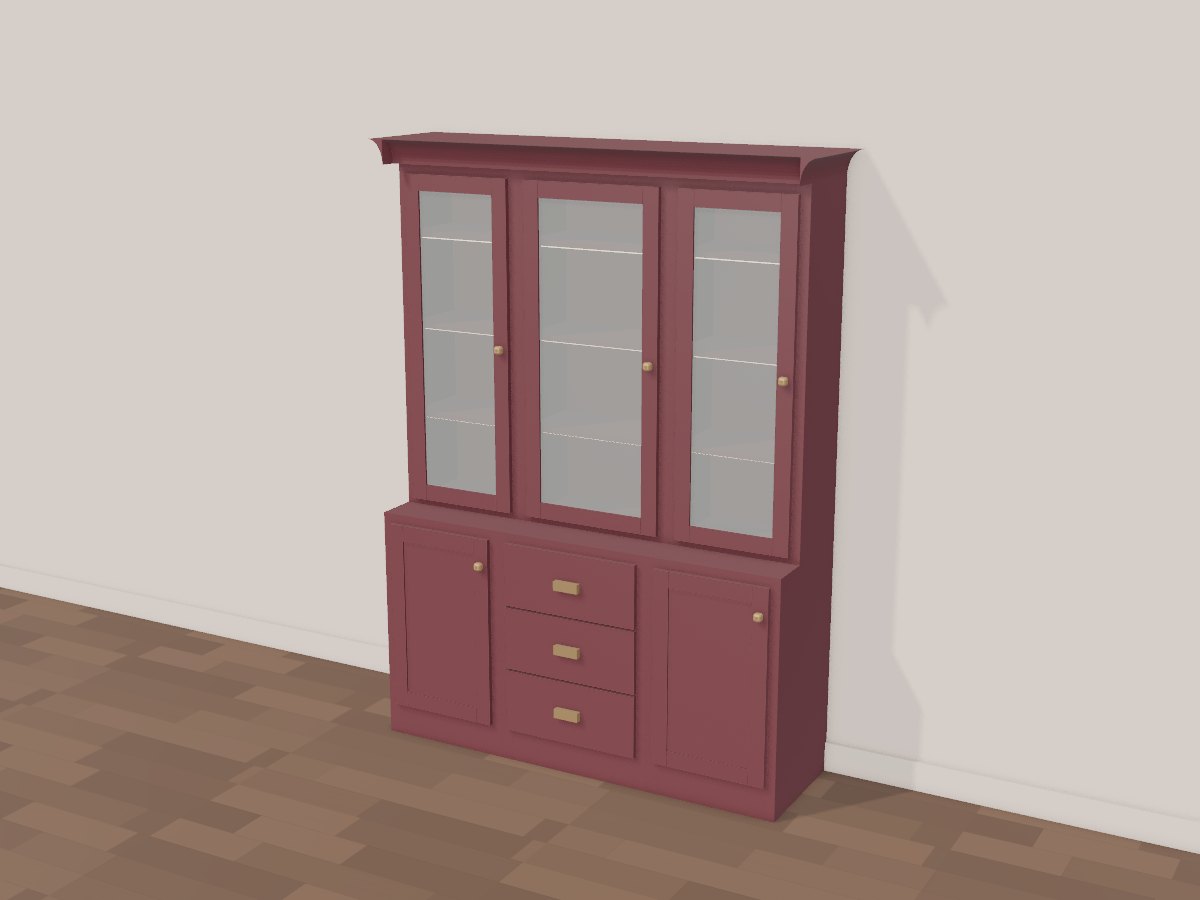

The 3D model
