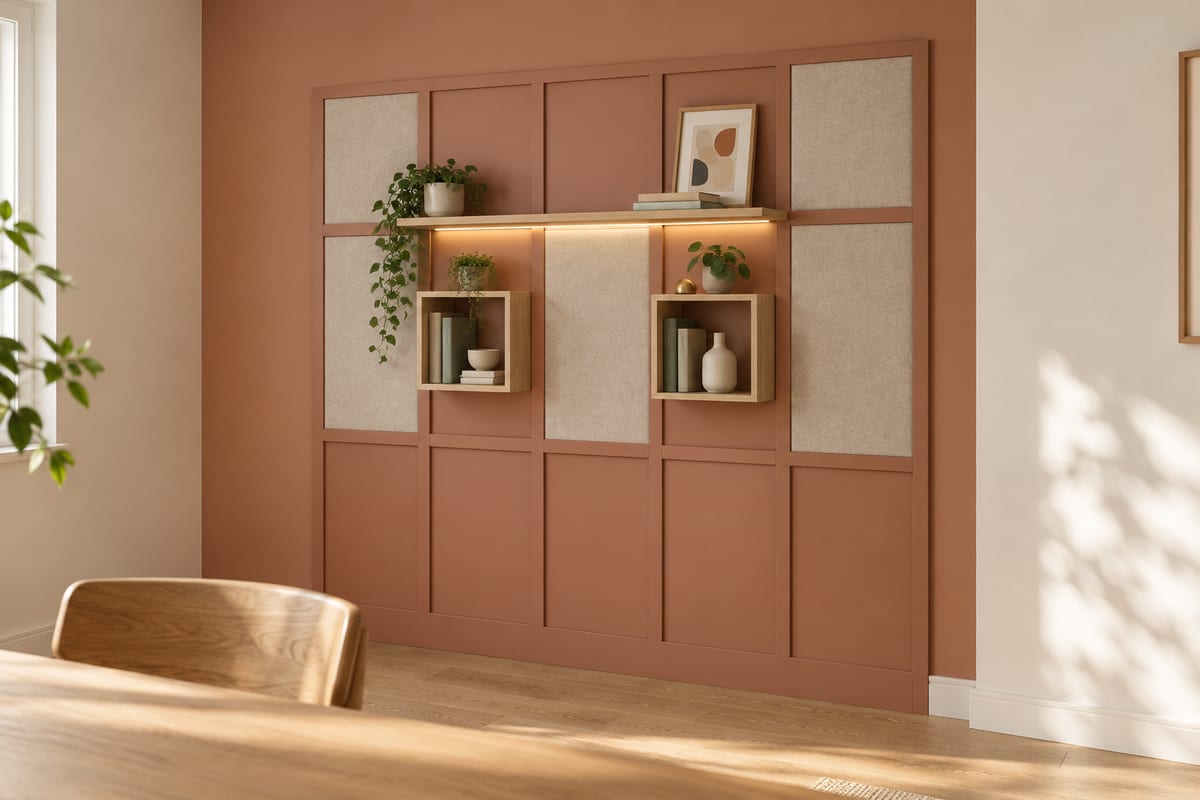

Cinnamon video-call backdrop wall

The wall behind a home-office desk, designed for the camera: a cinnamon grid of uprights and rails on an MDF lining, oat acoustic felt in five of its bays to take the echo out of a bare room, two open oak display boxes framing your head in the camera row and a lit oak ledge above that throws a soft warm backlight. It looks considered on every call and stands only 200mm off the wall.

Open this design in Crava

Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.

At a glance

Overall W x D x H

2400 x 192 x 2303 mm94 1/2" x 7 9/16" x 90 11/16"

Parts to cut

31

Build steps

27

Boards

2

Sheets

3

Solid wood

6.6 bd ft

Weight

87 kg192 lb

Materials

• MDF
• White oak

Finish

• Paint - cinnamon, eggshell
• Finishing oil - Hardwax oil, matt

Tools

• Saw
• Square
• Tape
• Drill
• Dowel jig
• Clamps
• Chisel
• Sandpaper
• Brush
• 10mm bit
• Cable clips

Hardware and fittings

• 3 x Acoustic PET felt panel, 12mm, oat
• 2 x Acoustic PET felt panel, 12mm, oat
• 1 x LED strip in a slim aluminium channel with opal diffuser, 24V, 2700K, high CRI
• 1 x 24V dimmable LED driver, plug-in, with inline dimmer
• 2 x Anti-tip furniture wall bracket, steel, with stud screws

Cut list

The first 3 of 13 lines, in millimetres (inches below), finished size including joint allowances.

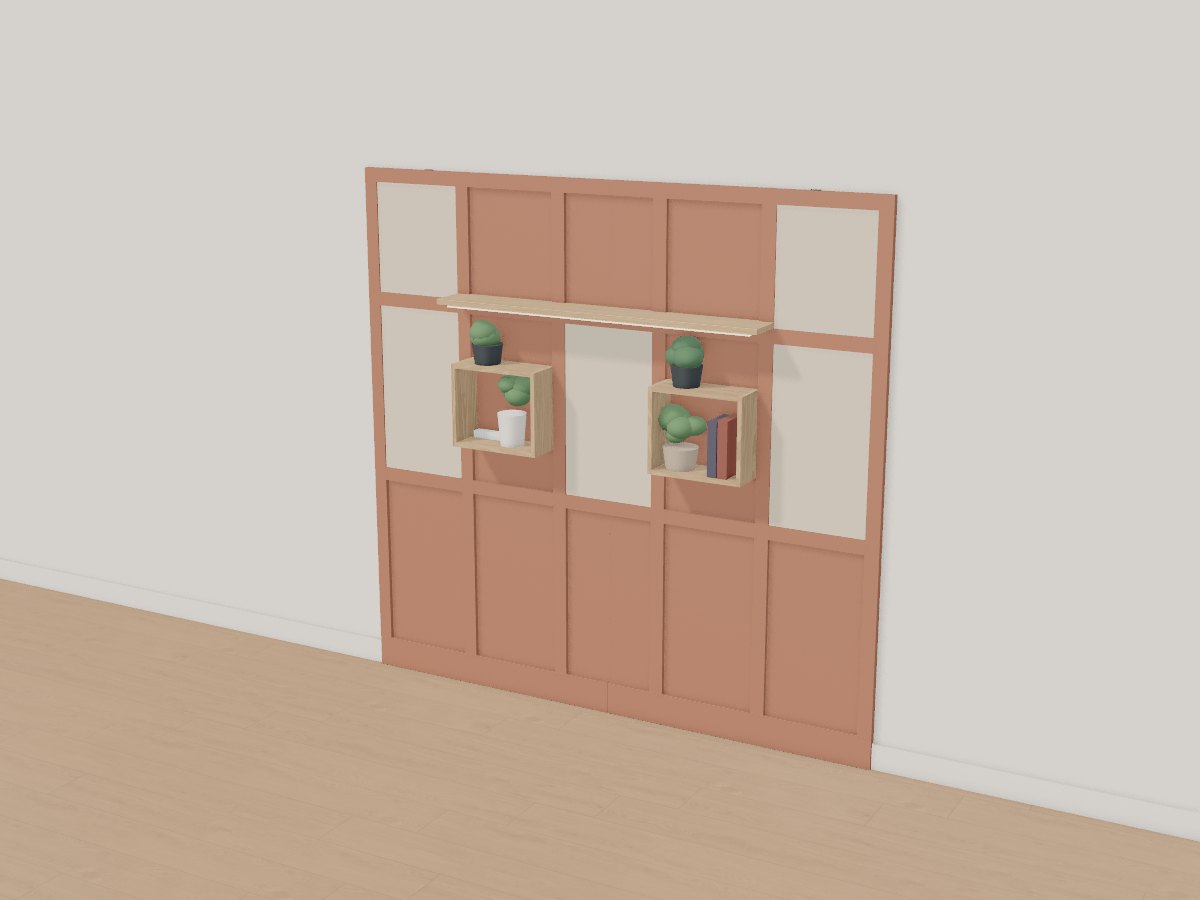

The 3D model
