Bread board with a lift-out crumb grate

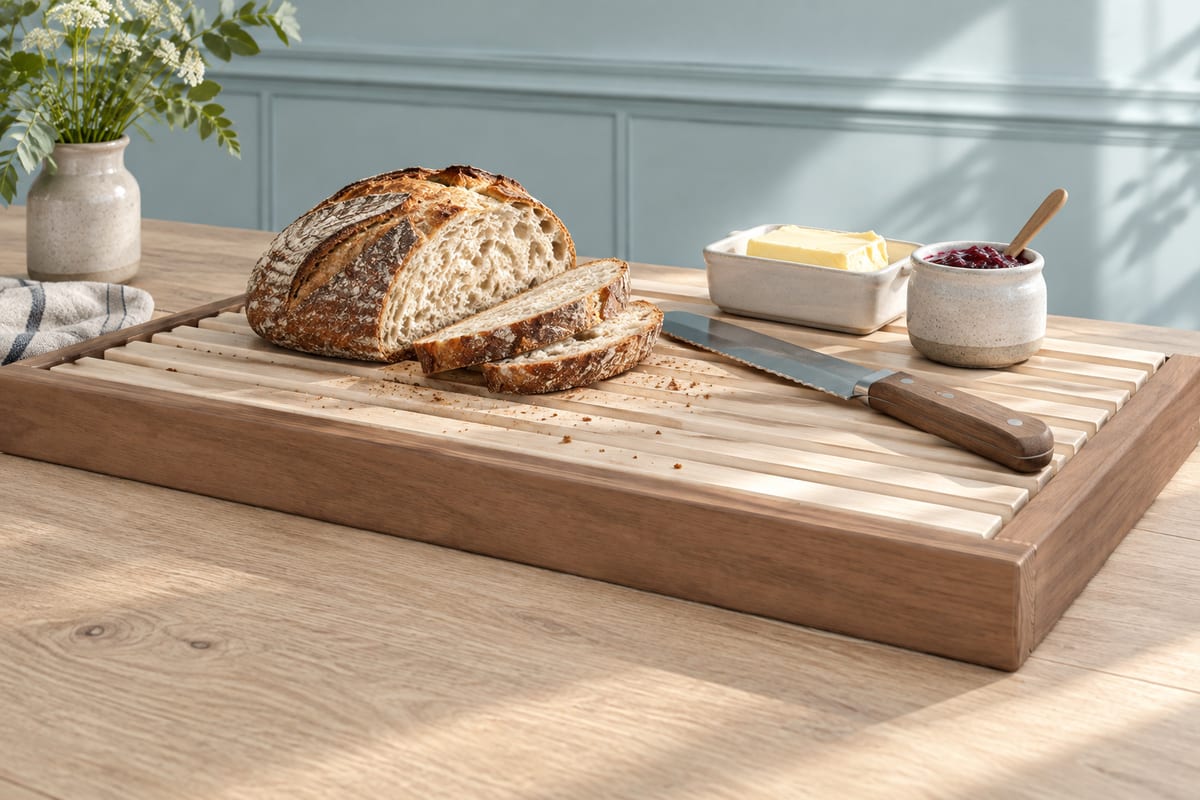

A 480 x 300mm bread board in two parts: a shallow walnut tray with a floating bottom, and a lift-out grate of nine maple slats on two battens that drops over locating pins inside it. Every crumb from a crusty loaf falls between the slats instead of across the table; lift the grate off and tip the tray over the bin, and the tray alone doubles as a serving tray.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 480 x 300 x 40 mm18 7/8" x 11 13/16" x 1 9/16"
- Parts to cut
- 16
- Build steps
- 14
- Boards
- 4
- Solid wood
- 1.5 bd ft
- Weight
- 2.2 kg5 lb
Materials
- Hard maple
- Black walnut
Finish
- Finishing oil - mineral oil and beeswax, satin
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Table saw
- Dowel jig
- Clamps
- Sandpaper
- Brush
Cut list
The first 3 of 5 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Tray side | 480 x 40 x 1518 7/8" x 1 9/16" x 9/16" | Black walnut |
| B | 1 | Tray bottom | 462 x 282 x 1018 3/16" x 11 1/8" x 3/8" | Black walnut |
| C | 2 | Tray end | 284 x 40 x 1511 3/16" x 1 9/16" x 9/16" | Black walnut |
| +11 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 16 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 14 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

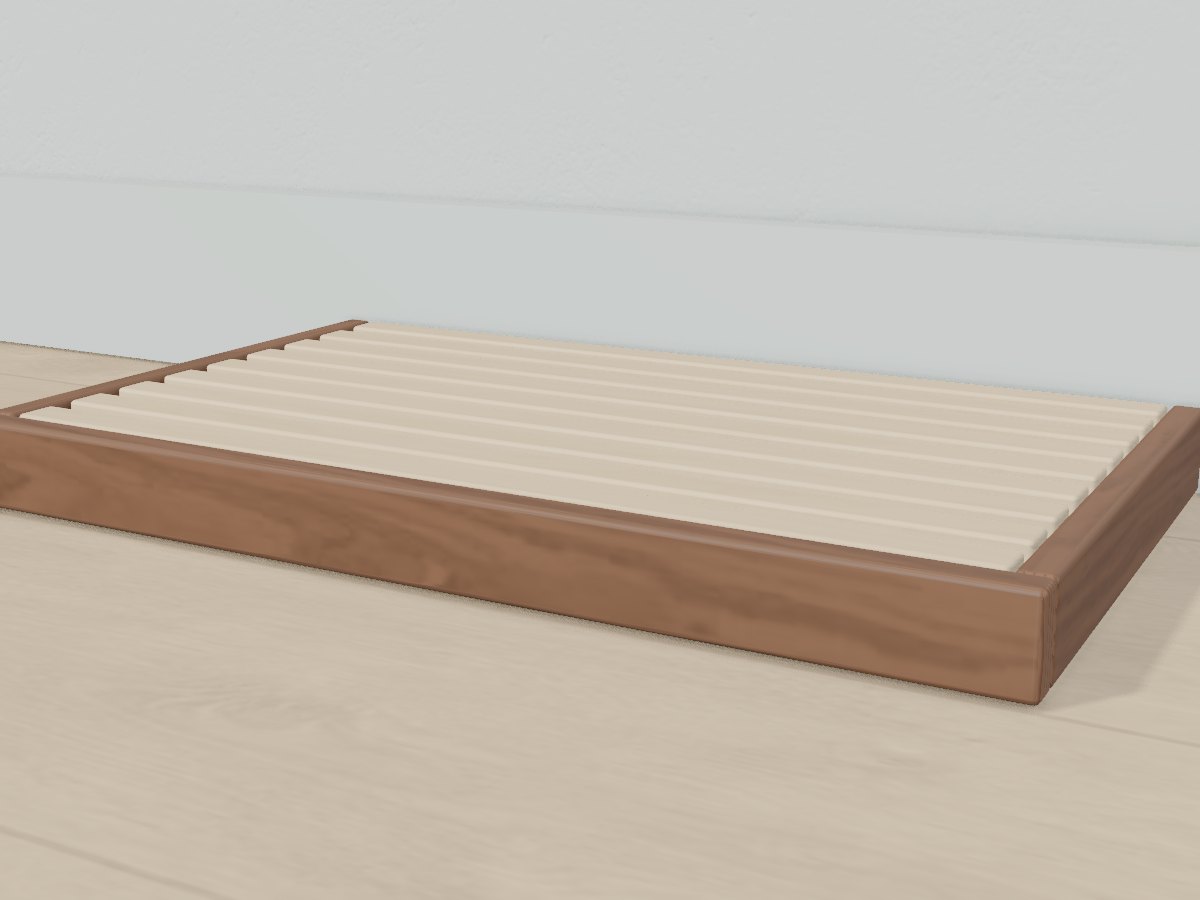

The 3D model
