Cherry keepsake box with walnut splines
A cherry keepsake box sized for letters, photographs and a child's first shoes, its mitred corners locked with walnut splines that show as fine dark stripes. The lid is sawn from the same mitred box, so the grain runs unbroken over the joint line, and maple liners standing proud of the body seat the lid without a catch.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 360 x 259 x 156 mm14 3/16" x 10 3/16" x 6 1/8"
- Parts to cut
- 31
- Build steps
- 26
- Boards
- 5
- Sheets
- 1
- Solid wood
- 1.8 bd ft
- Weight
- 2.9 kg6 lb
Materials
- Black walnut
- Cherry
- Hard maple
- Birch plywood
Finish
- Finishing oil - Hardwax oil, satin
- Clear finish - Water-based clear lacquer, matt, matte
Tools
- Saw
- Square
- Tape
- Router
- Table saw
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Solid brass box butt hinges, 50 x 30mm, with a lid stay
Cut list
The first 3 of 10 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Bottom | 342 x 232 x 613 7/16" x 9 1/8" x 1/4" | Birch plywood |
| B | 1 | Lid lift tab | 56 x 14 x 62 3/16" x 9/16" x 1/4" | Black walnut |
| C | 16 | Walnut spline | 14 x 14 x 39/16" x 9/16" x 1/8" | Black walnut |
| +13 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 31 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 26 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

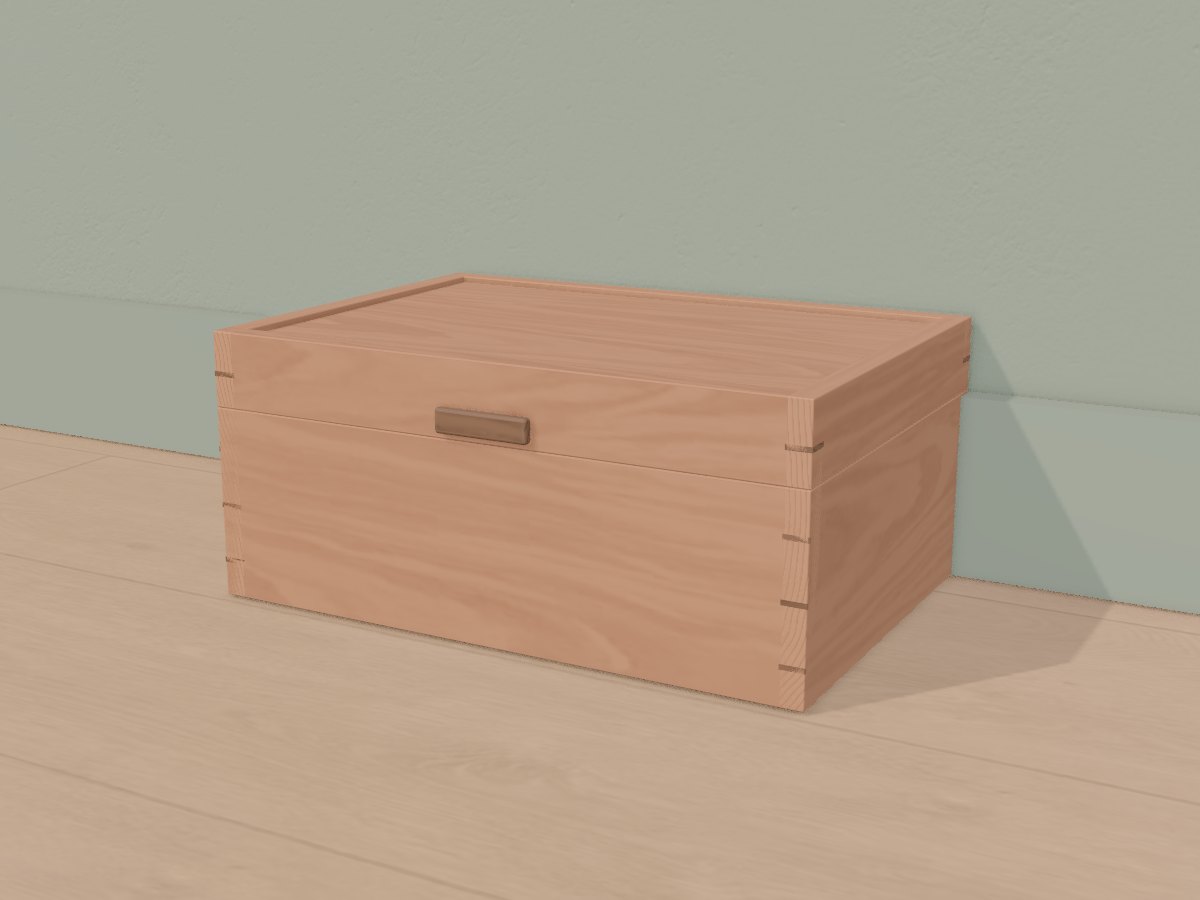

The 3D model
