Bottle green wine wall

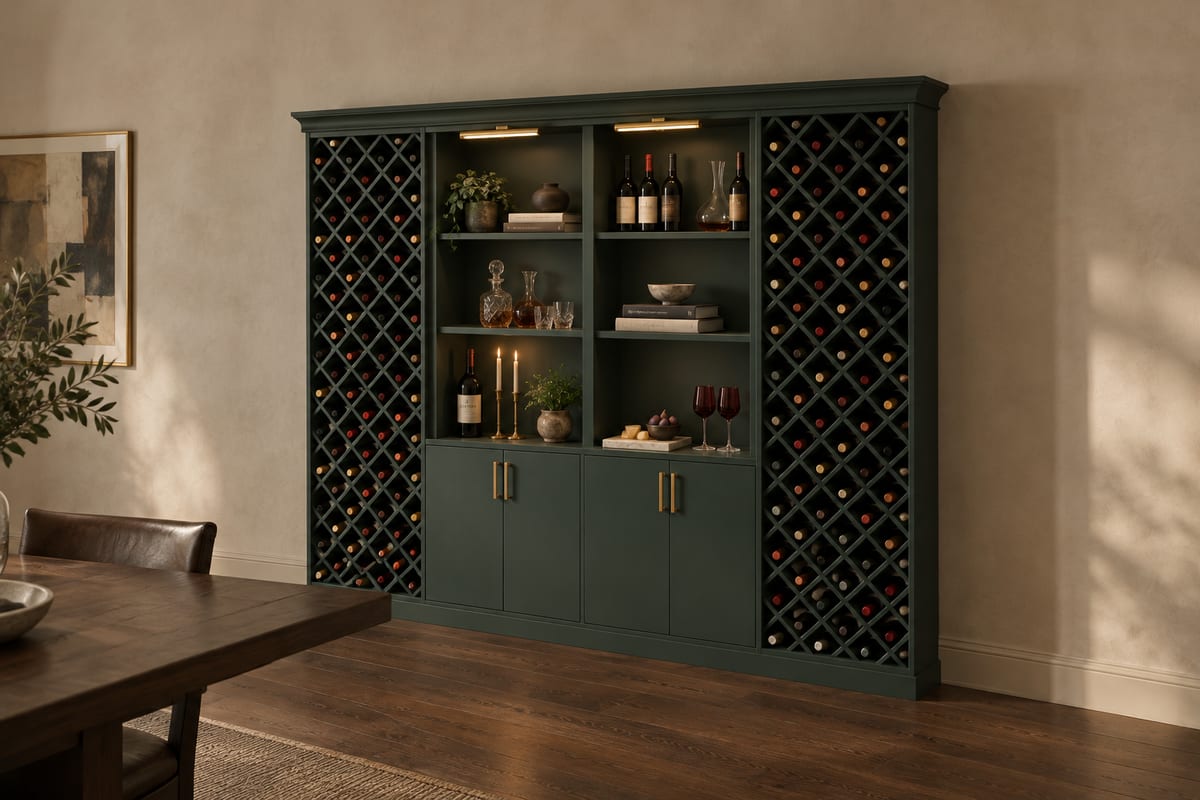

A floor-to-ceiling wine wall painted deep bottle green: two diamond-lattice towers holding well over a hundred bottles frame a serving sideboard with brass-pulled cupboards, under open display shelves lit by brass picture lights, all tied together by a cove crown.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 3126 x 434 x 2400 mm123 1/16" x 17 1/16" x 94 1/2"
- Parts to cut
- 114
- Build steps
- 69
- Boards
- 53
- Sheets
- 4
- Solid wood
- 198 bd ft
- Weight
- 252.7 kg557 lb
Materials
- Poplar (paint grade)
- Birch plywood
Finish
- Paint - deep bottle green, eggshell
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Clamps
- Chisel
- Pocket-hole jig
- Dowel jig
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 1 x Anti-tip furniture wall bracket, steel, with stud screws
- 8 x Concealed cabinet hinge, full overlay
- 4 x Bar pull, 128mm centres, brushed brass
- 2 x Plug-in picture light, brass, 450mm
- 1 x Cove crown moulding, 90mm
Cut list
The first 3 of 51 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Rack left - Back | 2400 x 700 x 694 1/2" x 27 9/16" x 1/4" | Birch plywood |
| B | 1 | Rack right - Back | 2400 x 700 x 694 1/2" x 27 9/16" x 1/4" | Birch plywood |
| C | 1 | Display 1 - Back | 1500 x 800 x 659 1/16" x 31 1/2" x 1/4" | Birch plywood |
| +111 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 114 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 69 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

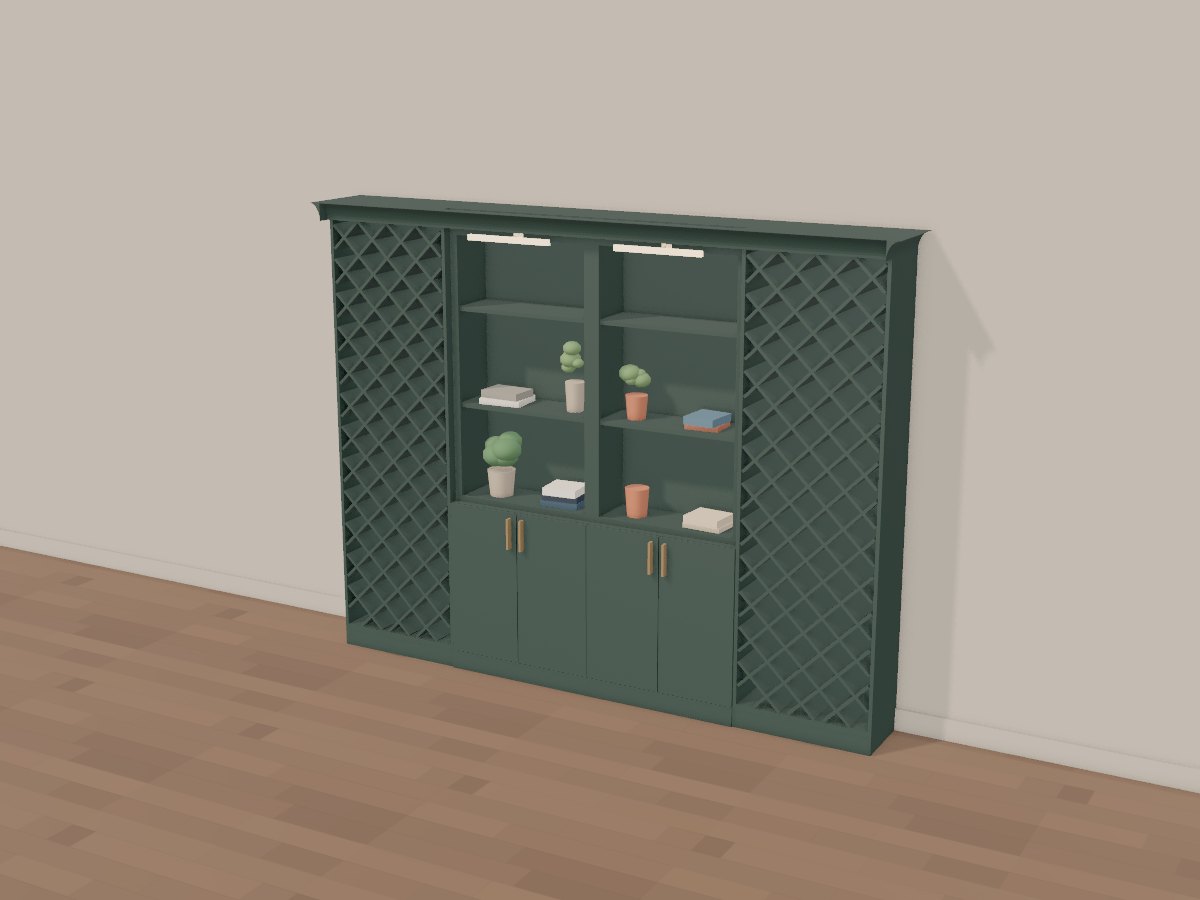

The 3D model
