Black-green twin compost bays

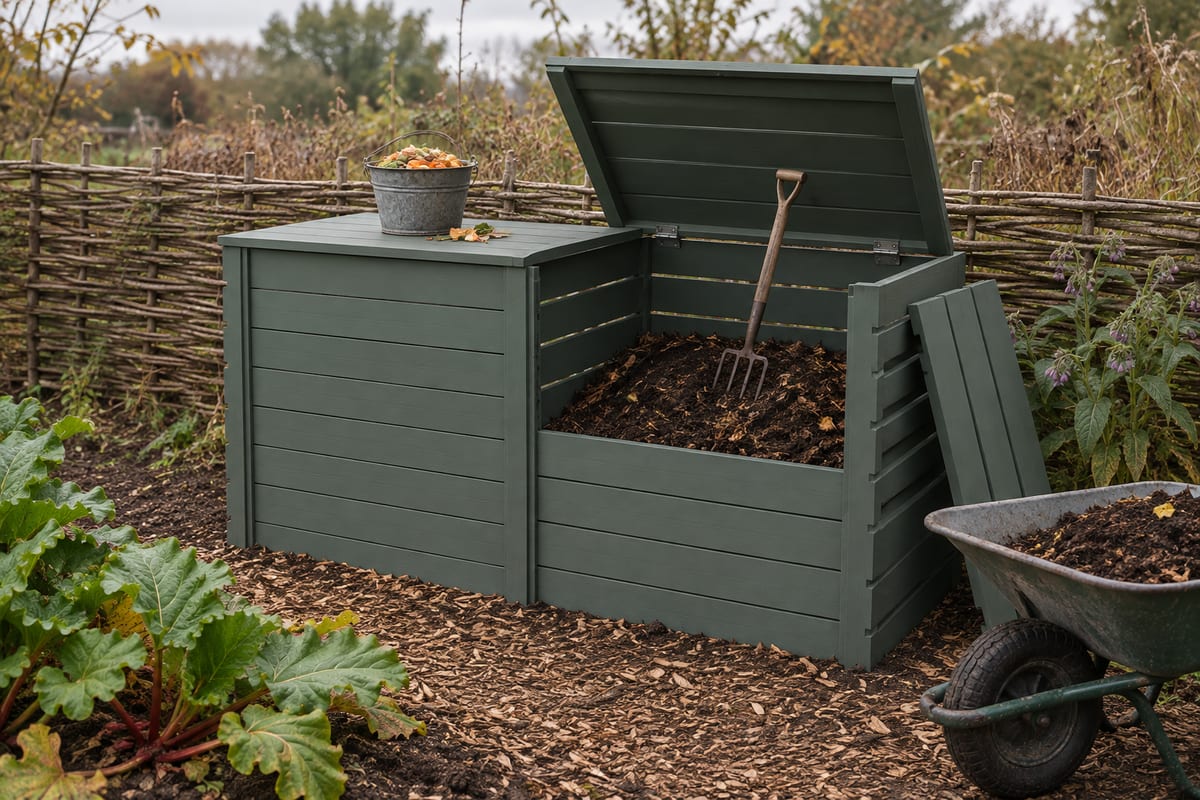

Two 900mm compost bays side by side under hinged lids that keep the rain off and the heat in: the front boards drop into guide channels and lift out one at a time, so you turn this year's heap into the next bay and shovel the finished compost out at ground level instead of over the top.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1970 x 933 x 925 mm77 9/16" x 36 3/4" x 36 7/16"
- Parts to cut
- 79
- Build steps
- 22
- Boards
- 24
- Solid wood
- 61.6 bd ft
- Weight
- 58.8 kg130 lb
Materials
- Pine (eastern white)
Finish
- Paint - solid exterior stain, black-green, matte
Tools
- Saw
- Square
- Tape
- Router
- Table saw
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 4 x Black tee hinge, 150mm
Cut list
The first 3 of 17 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 8 | Board | 1950 x 95 x 1876 3/4" x 3 3/4" x 11/16" | Pine (eastern white) |
| B | 1 | Lid hinge rail | 1950 x 78 x 2276 3/4" x 3 1/16" x 7/8" | Pine (eastern white) |
| C | 8 | Bay 1 lid board | 983 x 104 x 2238 11/16" x 4 1/8" x 7/8" | Pine (eastern white) |
| +62 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 79 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 22 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

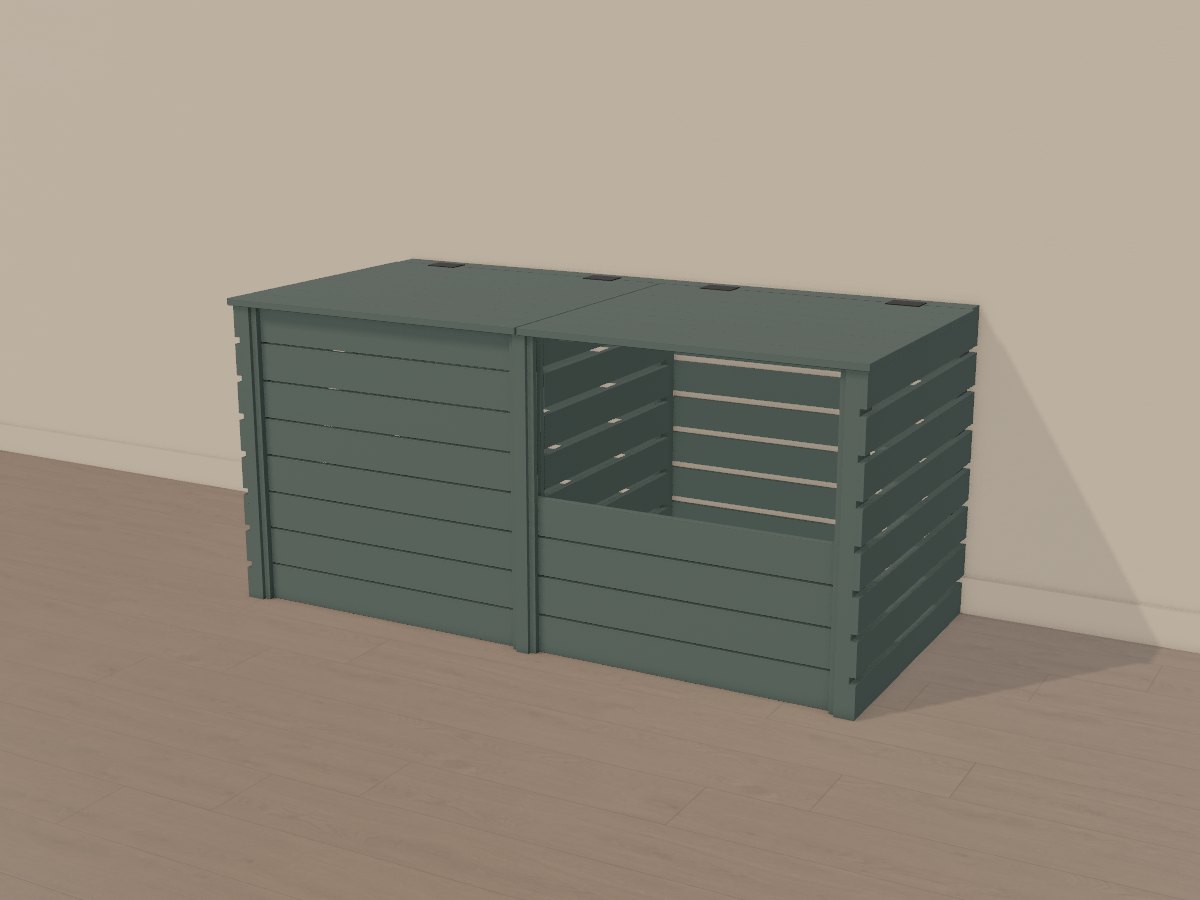

The 3D model
