Walnut pill coffee table
A soft-edged coffee table in black walnut: a pill-shaped top with fully rounded ends, carried on two thick slab ends each cut through with an arch, joined by hidden rails. Curvy and sculptural from every side, and without a single sharp corner to bump a shin on.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1250 x 650 x 380 mm49 3/16" x 25 9/16" x 14 15/16"
- Parts to cut
- 5
- Build steps
- 9
- Boards
- 4
- Solid wood
- 18.4 bd ft
- Weight
- 21.4 kg47 lb
Materials
- Black walnut
Finish
- Finishing oil - Hardwax oil, satin
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Chisel
- Clamps
- Sandpaper
- Brush
Cut list
The first 3 of 3 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Pill-shaped top | 1250 x 650 x 3249 3/16" x 25 9/16" x 1 1/4" | Black walnut |
| B | 2 | Rail | 940 x 70 x 2237" x 2 3/4" x 7/8" | Black walnut |
| C | 2 | Arched end | 520 x 348 x 4020 1/2" x 13 11/16" x 1 9/16" | Black walnut |
Open this design in Crava to see the full cut list and plans - all 5 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 9 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

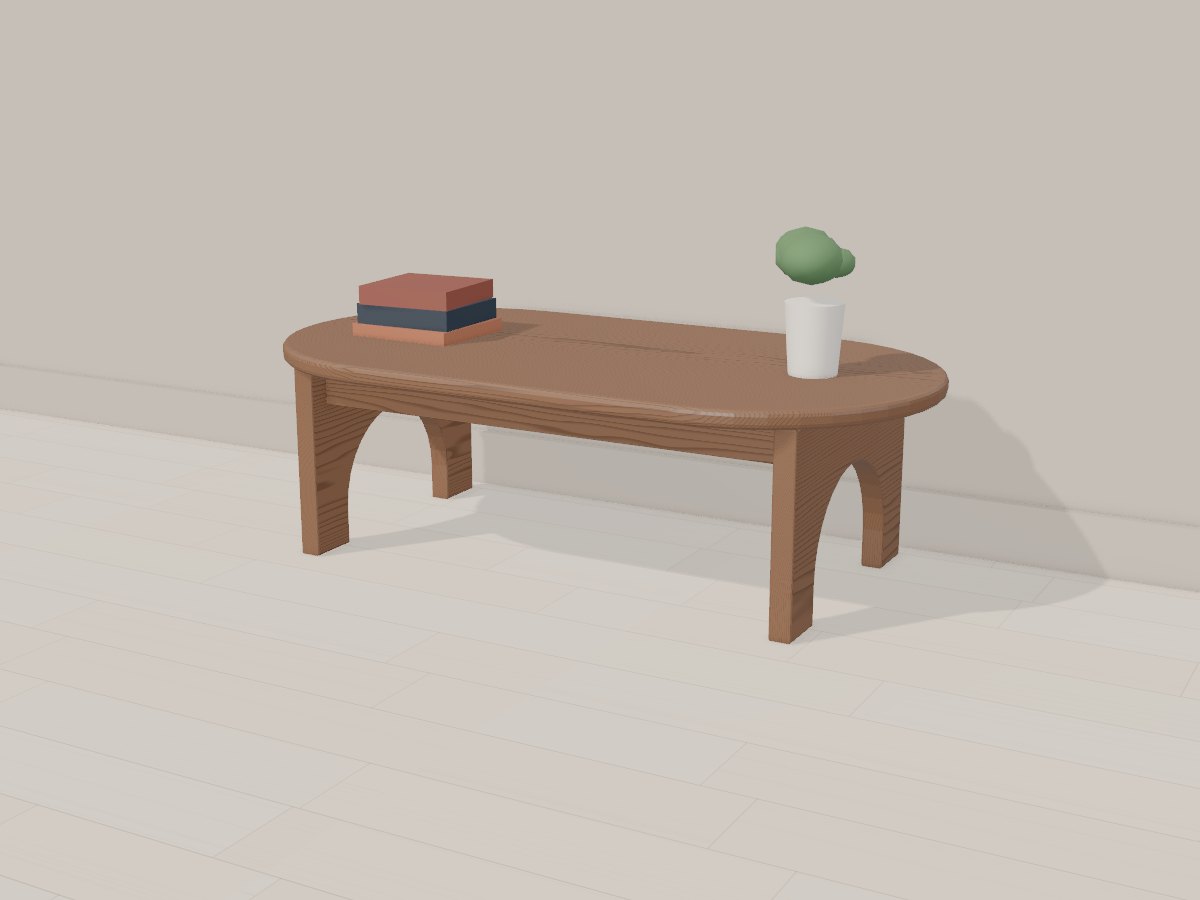

The 3D model
