Graphite panelled TV wall with hidden cables
A TV wall with nowhere for a cable to show: a 100mm timber build-out skinned in MDF between two tall open shelf columns, with recessed power and AV boxes behind the TV and behind the console joined by conduit in the stud void, a picture-frame panel round the screen, all in matt warm graphite so the TV all but vanishes when it is off. Below it an oiled oak console with four slab doors hangs on a French cleat, glowing underneath, and the columns carry oak shelves for books and speakers.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 3800 x 501 x 2440 mm149 5/8" x 19 3/4" x 96 1/16"
- Parts to cut
- 53
- Build steps
- 56
- Boards
- 17
- Sheets
- 9
- Solid wood
- 63.5 bd ft
- Weight
- 306.8 kg676 lb
Materials
- MDF
- White oak
- Pine (eastern white)
- Poplar (paint grade)
- Birch plywood
Finish
- Paint - warm graphite, matte
- Finishing oil - Hardwax oil, matt
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Table saw
- Drill
- Dowel jig
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
- 1 x Fixed low-profile TV wall bracket, VESA up to 600 x 400, for 65-inch
- 1 x Your TV, 65 inch (not part of this build)
- 2 x Recessed TV power and AV cable box, two sockets and a brush pass-through
- 8 x Concealed hinge, inset, with push-to-open
- 1 x LED strip in an aluminium channel with opal diffuser, 24V, 2700K
- 1 x 24V dimmable LED driver, plug-in
Cut list
The first 3 of 26 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Console - Back | 1760 x 300 x 669 5/16" x 11 13/16" x 1/4" | Birch plywood |
| B | 1 | Console - Hanging rail | 1760 x 100 x 1869 5/16" x 3 15/16" x 11/16" | Birch plywood |
| C | 1 | Console - French cleat, wall half | 1680 x 80 x 1866 1/8" x 3 1/8" x 11/16" | Birch plywood |
| +50 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 53 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 56 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

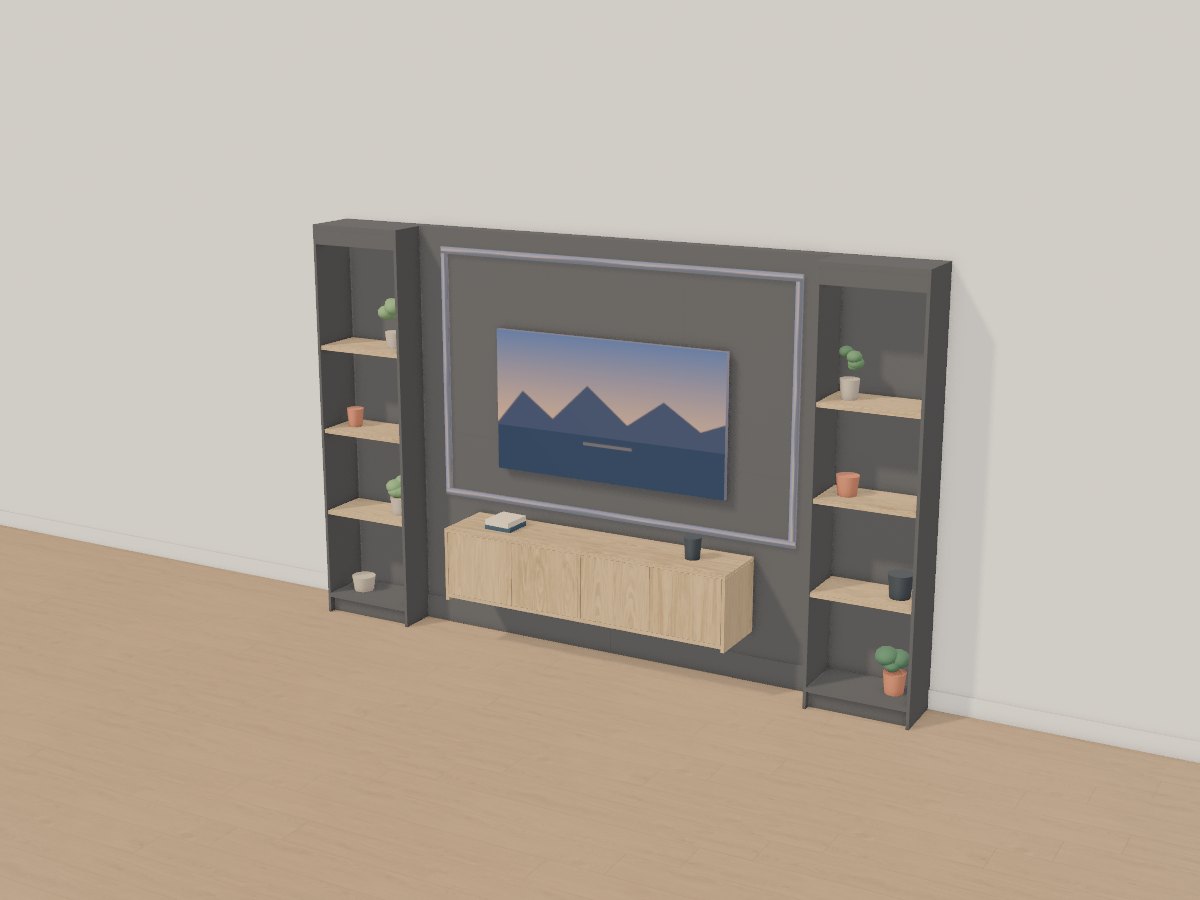

The 3D model
