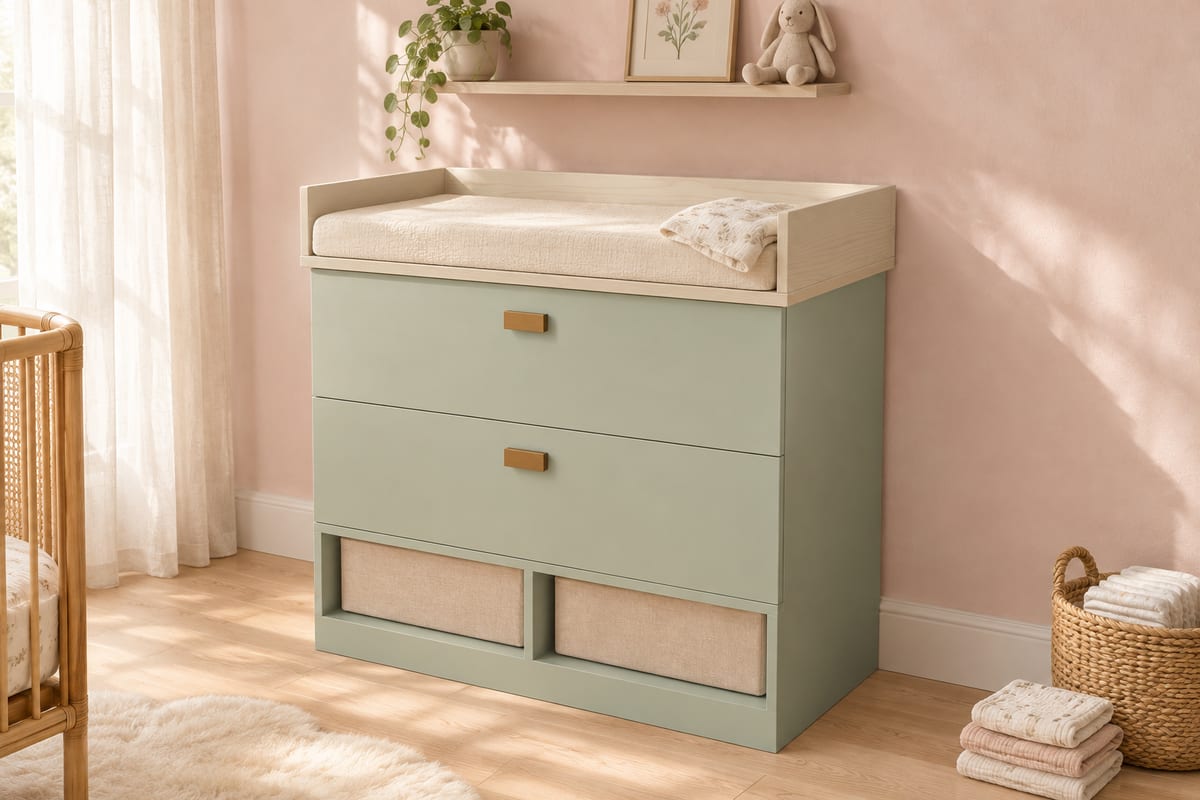

Sage nursery changing dresser
A soft sage nursery dresser that changes a baby now and holds a toddler’s clothes later: two seagrass baskets in open cubbies at the bottom, two deep drawers, and an oiled maple top with a raised changing tray, guarded on all four sides, holding a contoured pad. Every edge is rounded and it is fixed to the wall.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1030 x 545 x 1045 mm40 9/16" x 21 7/16" x 41 1/8"
- Parts to cut
- 29
- Build steps
- 46
- Boards
- 3
- Sheets
- 5
- Solid wood
- 9.4 bd ft
- Weight
- 116.2 kg256 lb
Materials
- Birch plywood
- Hard maple
- MDF
Finish
- Finishing oil - Hardwax oil, matt, toy-safe
- Paint - soft sage, satin
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Router
- Table saw
- Sandpaper
- Brush
Hardware and fittings
- 1 x Contoured changing pad with a safety strap and a wipe-clean cover
- 2 x Seagrass storage basket with handles, 430 x 440 x 175mm
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
- 4 x Side-mount drawer slide, 450mm
- 2 x Cup pull, 96mm centres, brushed brass
Cut list
The first 3 of 22 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Cubbies - Top | 982 x 514 x 1838 11/16" x 20 1/4" x 11/16" | Birch plywood |
| B | 1 | Drawers - Bottom | 982 x 496 x 1838 11/16" x 19 1/2" x 11/16" | Birch plywood |
| C | 1 | Drawers - Top | 982 x 496 x 1838 11/16" x 19 1/2" x 11/16" | Birch plywood |
| +26 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 29 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 46 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

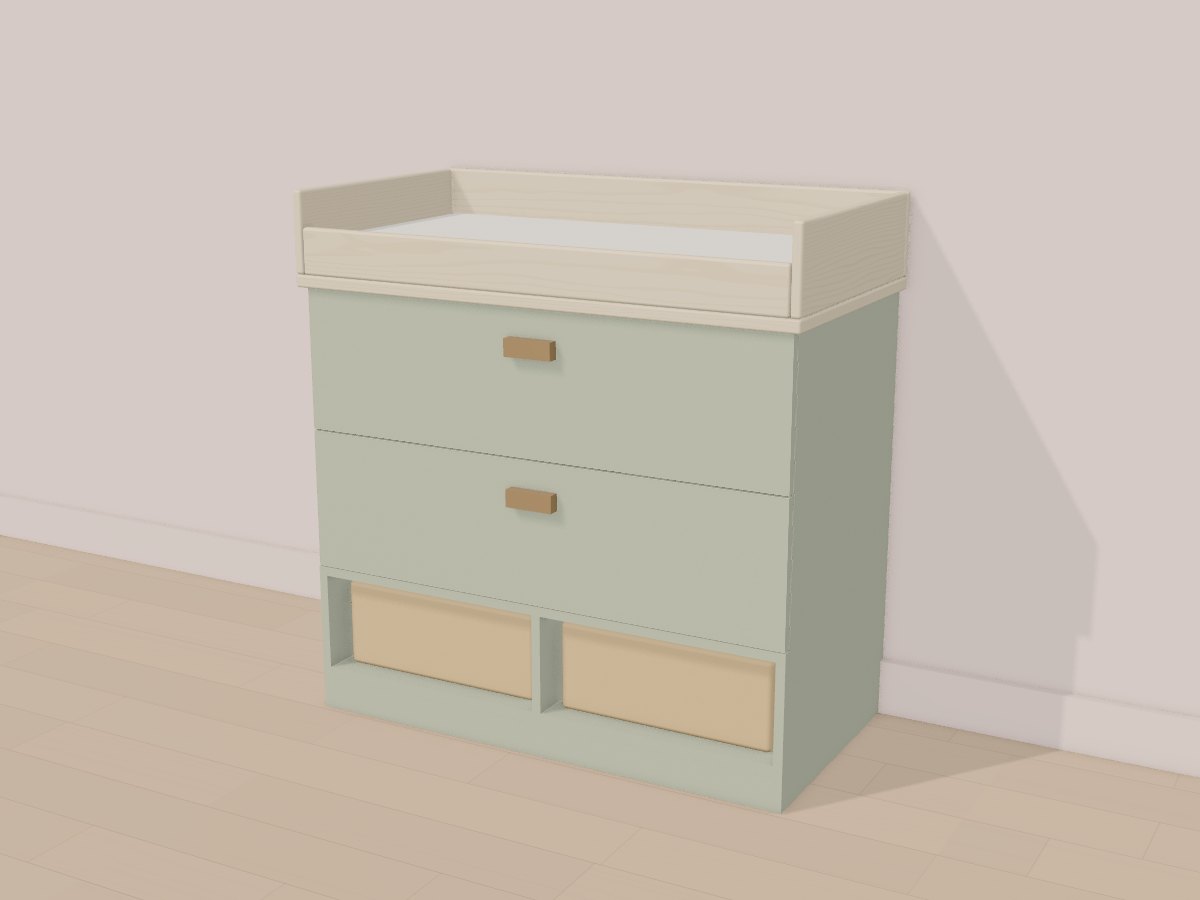

The 3D model
