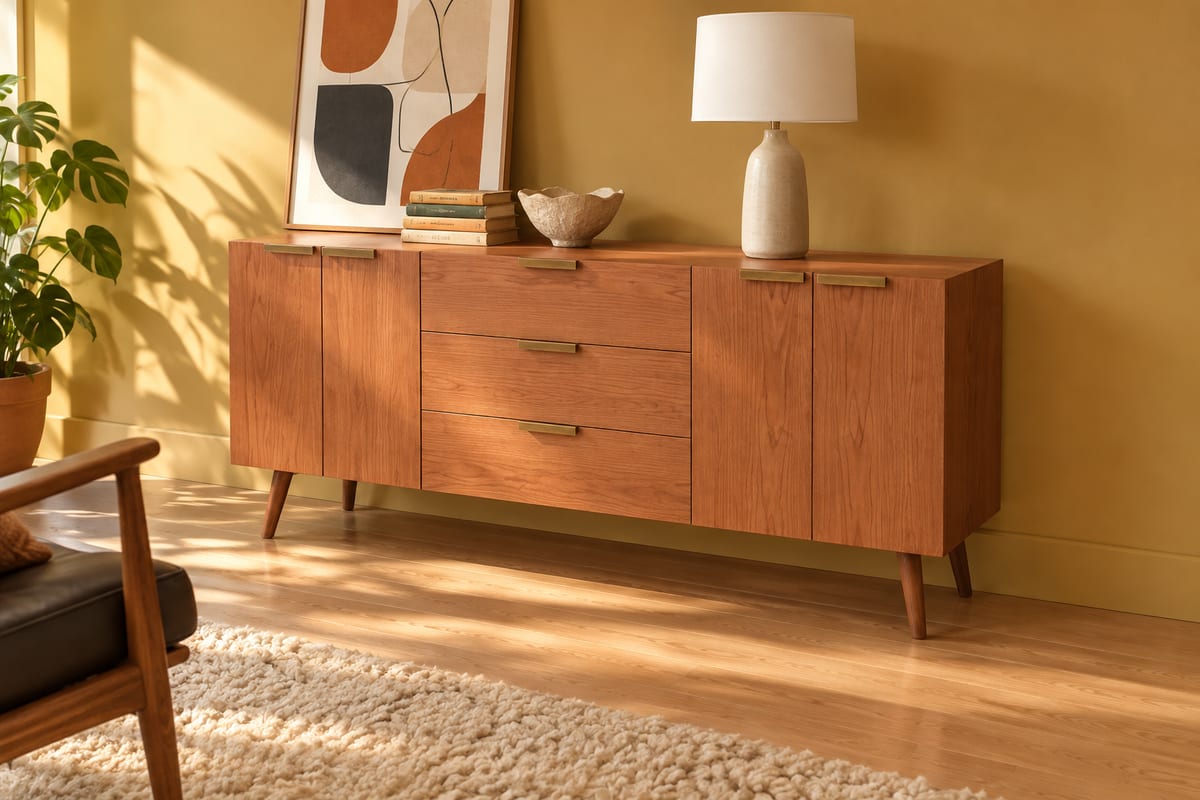

Cherry credenza
A mid-century credenza in solid cherry, long and low on four splayed, tapered legs: a bank of three drawers between two pairs of slab doors, with slim brass edge pulls and a warm oil finish that will deepen to red-gold over the years.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1680 x 476 x 770 mm66 1/8" x 18 3/4" x 30 5/16"
- Parts to cut
- 43
- Build steps
- 42
- Boards
- 8
- Sheets
- 2
- Solid wood
- 37.1 bd ft
- Weight
- 78.1 kg172 lb
Materials
- Cherry
- Birch plywood
Finish
- Finishing oil - Danish oil, satin
Tools
- Saw
- Square
- Tape
- Router
- Drill
- Clamps
- Table saw
- Sandpaper
- Brush
Hardware and fittings
- 4 x Angled leg mounting plate, 15 degrees, with M8 hanger bolt
- 8 x Concealed cabinet hinge, full overlay
- 7 x Edge pull, 150mm, brushed brass
- 6 x Side-mount drawer slide, 400mm
Cut list
The first 3 of 31 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Left - Back | 580 x 520 x 622 13/16" x 20 1/2" x 1/4" | Birch plywood |
| B | 1 | Drawers - Back | 580 x 640 x 622 13/16" x 25 3/16" x 1/4" | Birch plywood |
| C | 1 | Right - Back | 580 x 520 x 622 13/16" x 20 1/2" x 1/4" | Birch plywood |
| +40 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 43 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 42 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

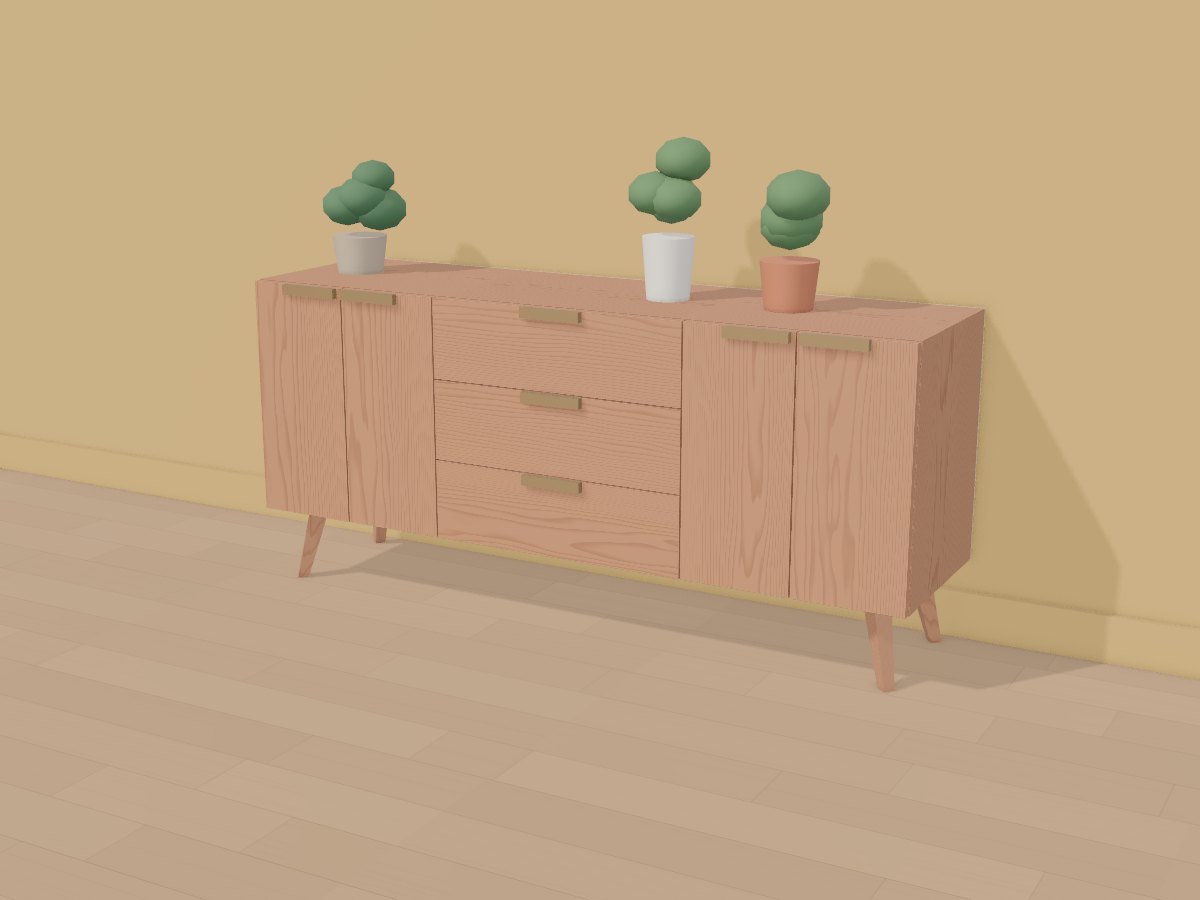

The 3D model
