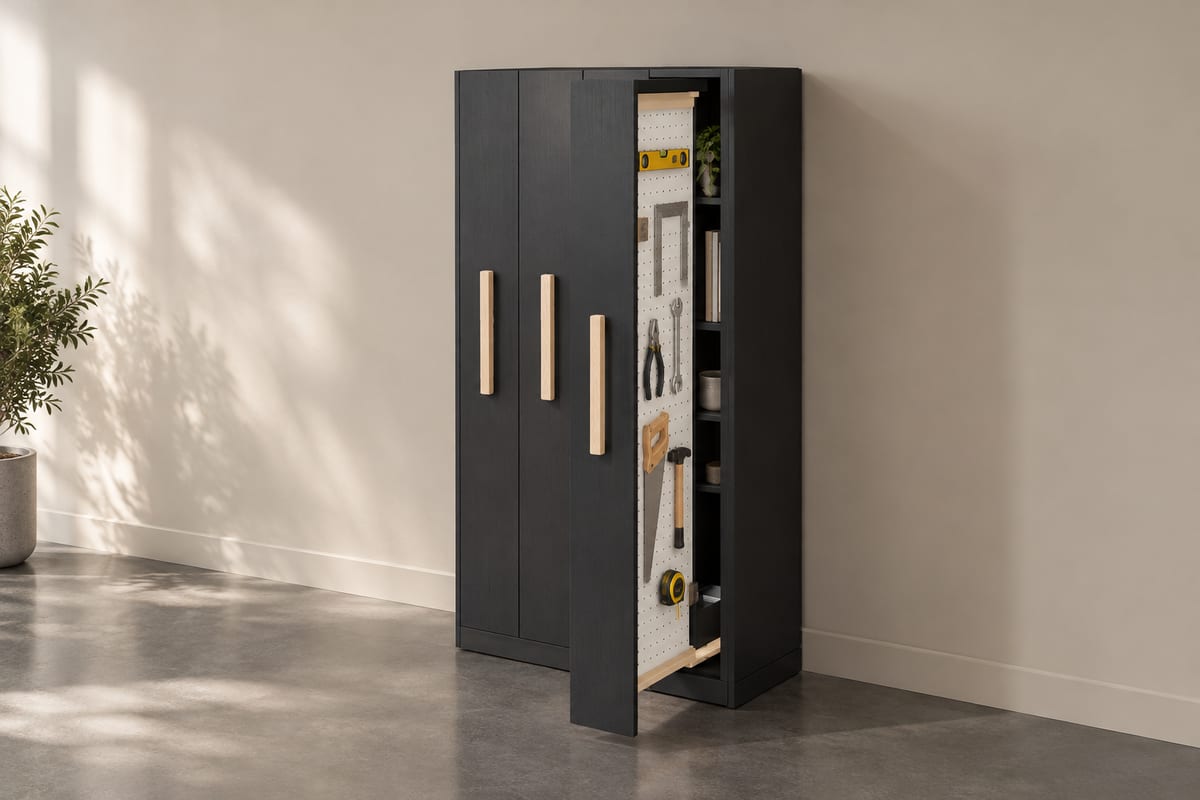

Pull-out pegboard tower
An ink-black tower that holds four pegboards side by side like an archive: each slides out on a top-mounted slide with tools hung on both faces, so 900mm of wall carries what would take four metres of open pegboard, and closed it is a clean cabinet of tall maple-pulled fronts with nothing to dust.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 900 x 1130 x 2003 mm35 7/16" x 44 1/2" x 78 7/8"
- Parts to cut
- 30
- Build steps
- 40
- Boards
- 3
- Sheets
- 6
- Solid wood
- 4.2 bd ft
- Weight
- 122.7 kg271 lb
Materials
- Hard maple
- Birch plywood
- MDF
Finish
- Paint - ink black, satin
- Finishing oil - Hardwax oil, satin
- Paint - warm white, matte
- Paint - tool, satin
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Anti-tip furniture wall bracket, steel, with stud screws
- 4 x Top-mount heavy pull-out slide, 550mm, 50kg, with bottom guide
- 1 x Your tools (not part of this build)
Cut list
The first 3 of 26 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Side | 2000 x 600 x 1878 3/4" x 23 5/8" x 11/16" | Birch plywood |
| B | 1 | Back | 2000 x 900 x 678 3/4" x 35 7/16" x 1/4" | Birch plywood |
| C | 1 | Pull-out 1 | 1912 x 212 x 1875 1/4" x 8 3/8" x 11/16" | Birch plywood |
| +26 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 30 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 40 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

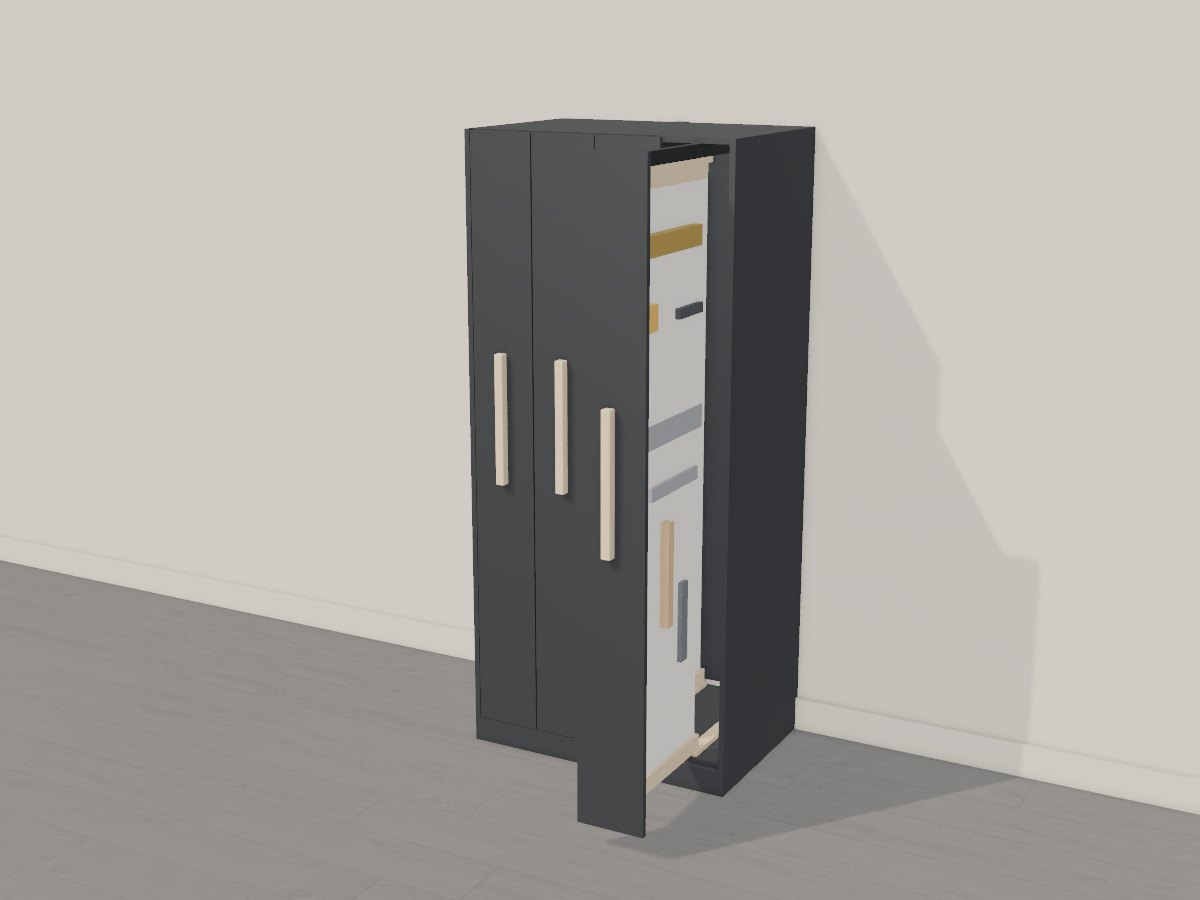

The 3D model
