Oak plant étagère
A tall, airy étagère for plants and pots: five soft-cornered white oak shelves threaded on slim blackened maple posts, each post section is tenoned through the shelf below and capped with a little turned finial. Made for the spot beside a sunny window.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 820 x 424 x 1570 mm32 5/16" x 16 11/16" x 61 13/16"
- Parts to cut
- 29
- Build steps
- 28
- Boards
- 7
- Solid wood
- 16 bd ft
- Weight
- 26.8 kg59 lb
Materials
- Hard maple
- White oak
Finish
- Finishing oil - Hardwax oil, matte
- Paint - blackened, satin
Tools
- Saw
- Square
- Tape
- Drill
- Mallet
- Dowel jig
- Clamps
- Sandpaper
- Brush
Hardware and fittings
- 1 x Anti-tip furniture strap, steel, with stud screws
Cut list
The first 3 of 9 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 8 | Post, section | 354 x 30 x 3013 15/16" x 1 3/16" x 1 3/16" | Hard maple |
| B | 8 | Post, section | 350 x 30 x 3013 3/4" x 1 3/16" x 1 3/16" | Hard maple |
| C | 4 | Post, section | 115 x 30 x 304 1/2" x 1 3/16" x 1 3/16" | Hard maple |
| +9 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 29 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 28 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

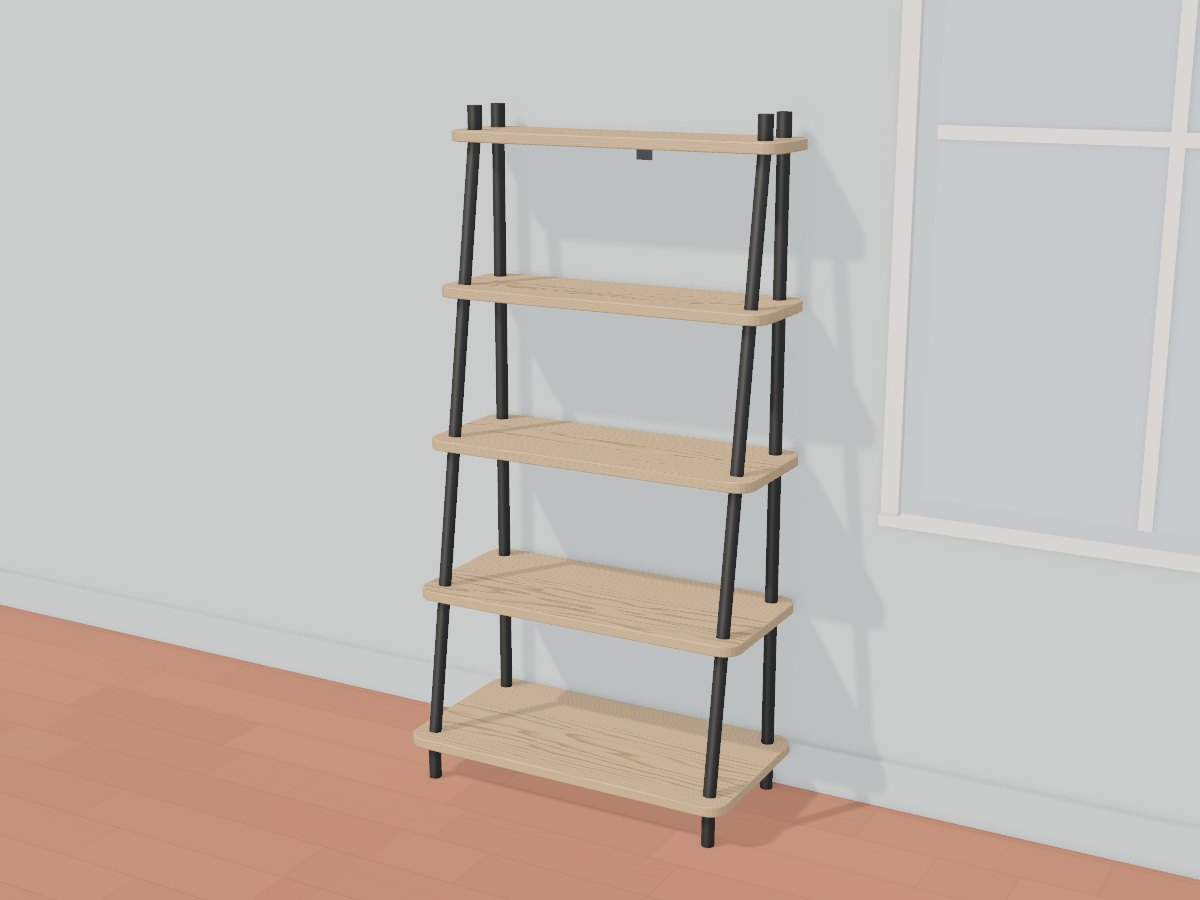

The 3D model
