Maple hi-fi console

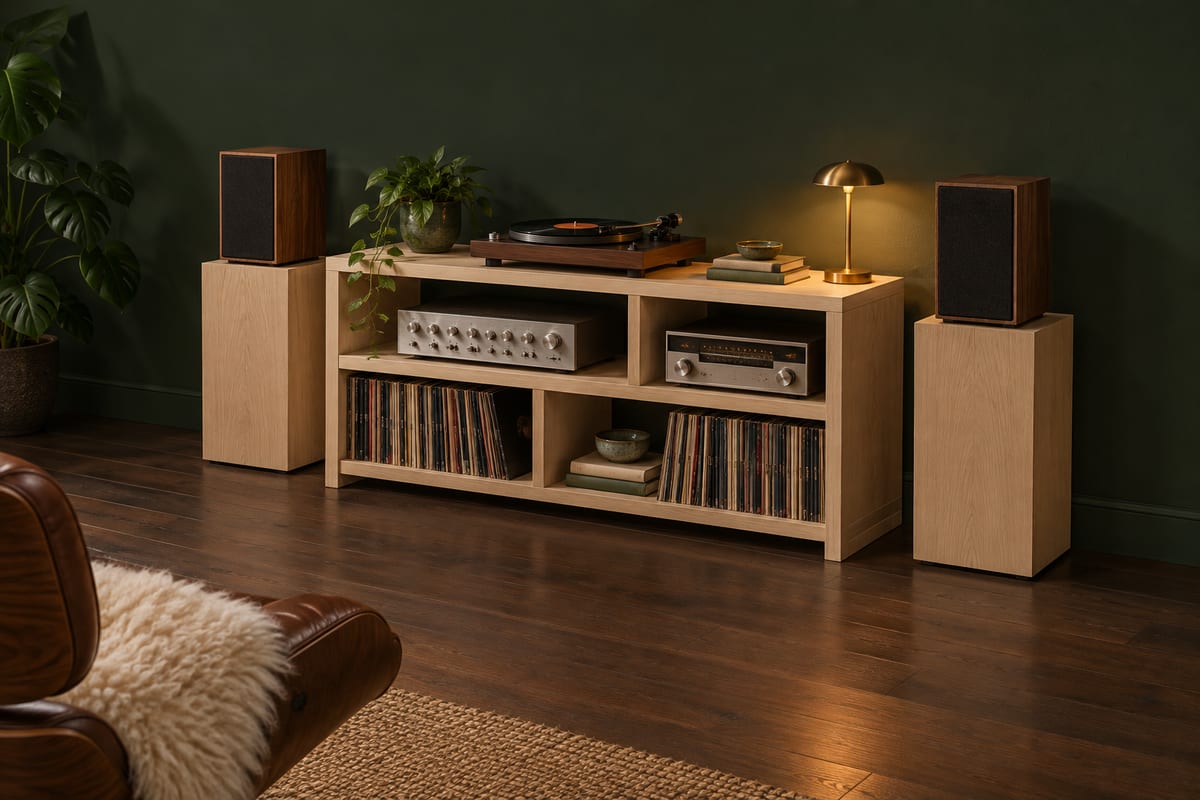

A listening-room set in solid hard maple: a low, open hi-fi console built from 40mm-thick boards - chunky end slabs, thick housed shelves and staggered partitions for the amp, the turntable and the records - with a pair of matching speaker plinths, each floating on a dark recessed foot, that lift the speakers to ear height. Finished in an amber-tinted oil that gives the pale maple a honeyed glow.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2320 x 450 x 620 mm91 5/16" x 17 11/16" x 24 7/16"
- Parts to cut
- 20
- Build steps
- 30
- Boards
- 9
- Sheets
- 1
- Solid wood
- 55.3 bd ft
- Weight
- 93.4 kg206 lb
Materials
- Hard maple
- Birch plywood
Finish
- Stain - amber-tinted hardwax oil, matte
- Paint - soft black, matte
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Dowel jig
- Chisel
- Sandpaper
- Brush
Cut list
The first 3 of 11 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Speaker plinth, recessed foot | 276 x 276 x 2410 7/8" x 10 7/8" x 15/16" | Birch plywood |
| B | 1 | Top | 1400 x 450 x 4055 1/8" x 17 11/16" x 1 9/16" | Hard maple |
| C | 1 | Rail | 1360 x 60 x 2053 9/16" x 2 3/8" x 13/16" | Hard maple |
| +16 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 20 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 30 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

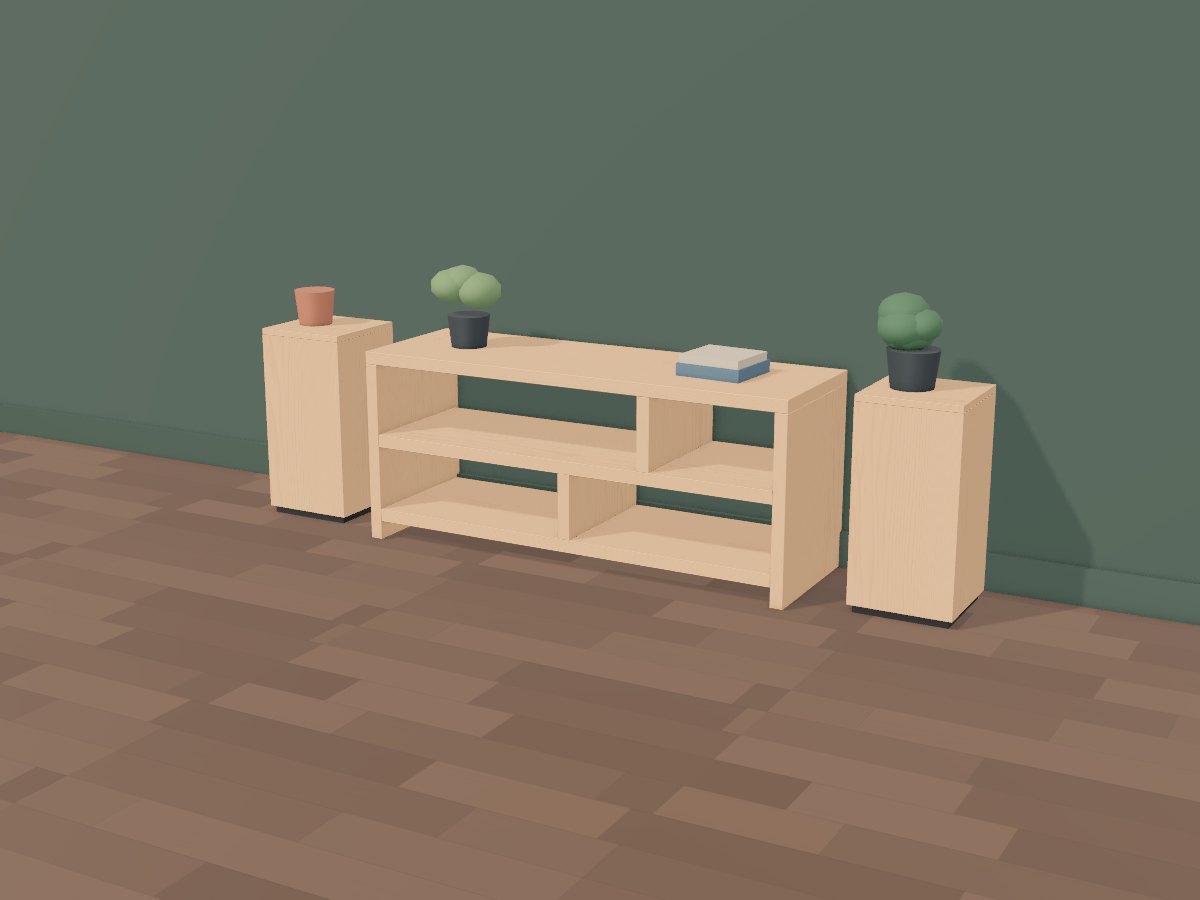

The 3D model
