Lichen Shaker wainscot with peg rail

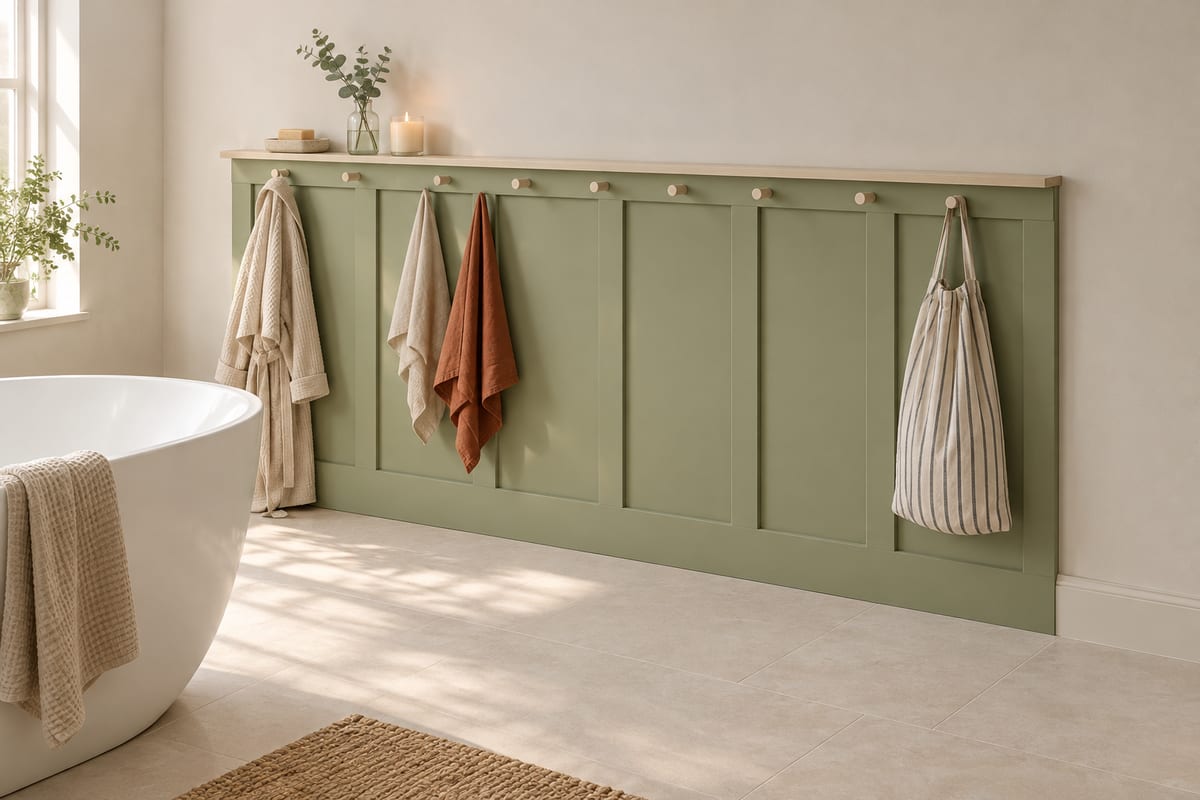

Shaker wainscot for a bathroom: lichen-green stiles and a deep bottom rail on a moisture-resistant MDF ground, topped at 1.24m by a solid peg rail with eleven turned maple pegs and an oiled maple cap shelf. Towels, a robe and a laundry bag hang off the floor and dry in the air, the cap holds soap and a candle, and the painted panelling shrugs off splashes that would spoil plaster.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2800 x 124 x 1262 mm110 1/4" x 4 7/8" x 49 11/16"
- Parts to cut
- 27
- Build steps
- 16
- Boards
- 3
- Sheets
- 4
- Solid wood
- 5.6 bd ft
- Weight
- 45.4 kg100 lb
Materials
- Hard maple
- MDF
- Poplar (paint grade)
Finish
- Paint - lichen green, satin
- Finishing oil - Hardwax oil, matt
Tools
- Saw
- Square
- Tape
- Drill
- Dowel jig
- Clamps
- Sandpaper
- Brush
Hardware and fittings
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
Cut list
The first 3 of 6 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Maple cap shelf | 1400 x 95 x 2255 1/8" x 3 3/4" x 7/8" | Hard maple |
| B | 11 | Shaker peg | 90 x 22 x 223 9/16" x 7/8" x 7/8" | Hard maple |
| C | 2 | Bottom rail | 1400 x 160 x 1855 1/8" x 6 5/16" x 11/16" | MDF |
| +12 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 27 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 16 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

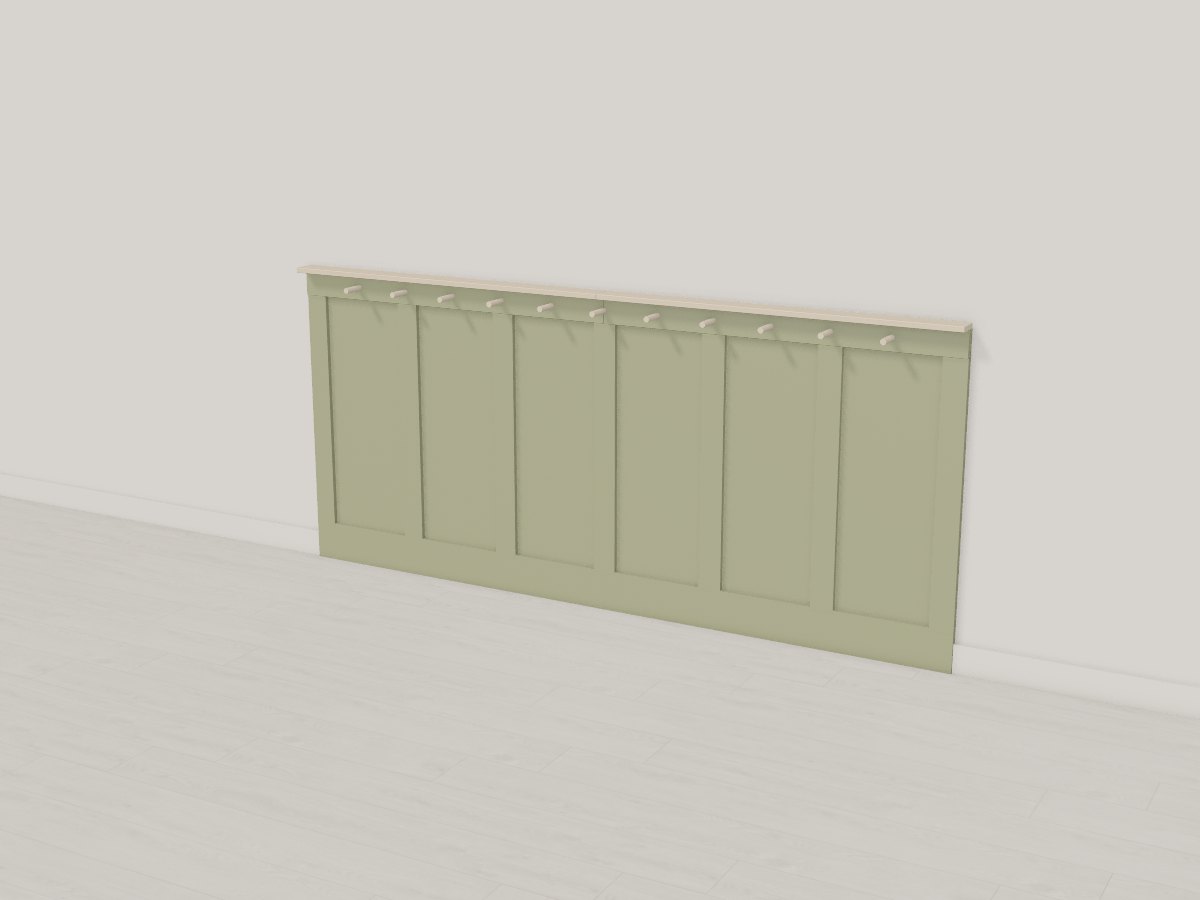

The 3D model
