Black and oak aquarium stand
A stand for a 300 litre aquarium: a soft black painted case with 24mm sides and a middle pair taking the weight, four slab doors with brass edge pulls hiding the filter and supplies, on a shadow-gap kick, under a natural oiled white oak top that frames the glass.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1230 x 496 x 1331 mm48 7/16" x 19 1/2" x 52 3/8"
- Parts to cut
- 19
- Build steps
- 25
- Boards
- 2
- Sheets
- 4
- Solid wood
- 8.3 bd ft
- Weight
- 829.6 kg1829 lb
Materials
- Birch plywood
- White oak
Finish
- Finishing oil - Hardwax oil, matt, matte
- Paint - soft black, satin
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 1 x Aquarium levelling mat, 5mm closed-cell foam, cut to 1200 x 450mm
- 1 x Your aquarium, 1200 x 450 x 550mm, about 300 litres, rimless low-iron glass (not part of this build)
- 1 x Aquarium LED light bar, plug-in, 1100mm, with legs over the rim
- 8 x Concealed cabinet hinge, full overlay
- 4 x Edge pull, 150mm, brushed brass
Cut list
The first 3 of 17 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Stand left - Side | 730 x 456 x 2428 3/4" x 17 15/16" x 15/16" | Birch plywood |
| B | 1 | Stand left - Back | 730 x 600 x 628 3/4" x 23 5/8" x 1/4" | Birch plywood |
| C | 2 | Stand right - Side | 730 x 456 x 2428 3/4" x 17 15/16" x 15/16" | Birch plywood |
| +14 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 19 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 25 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

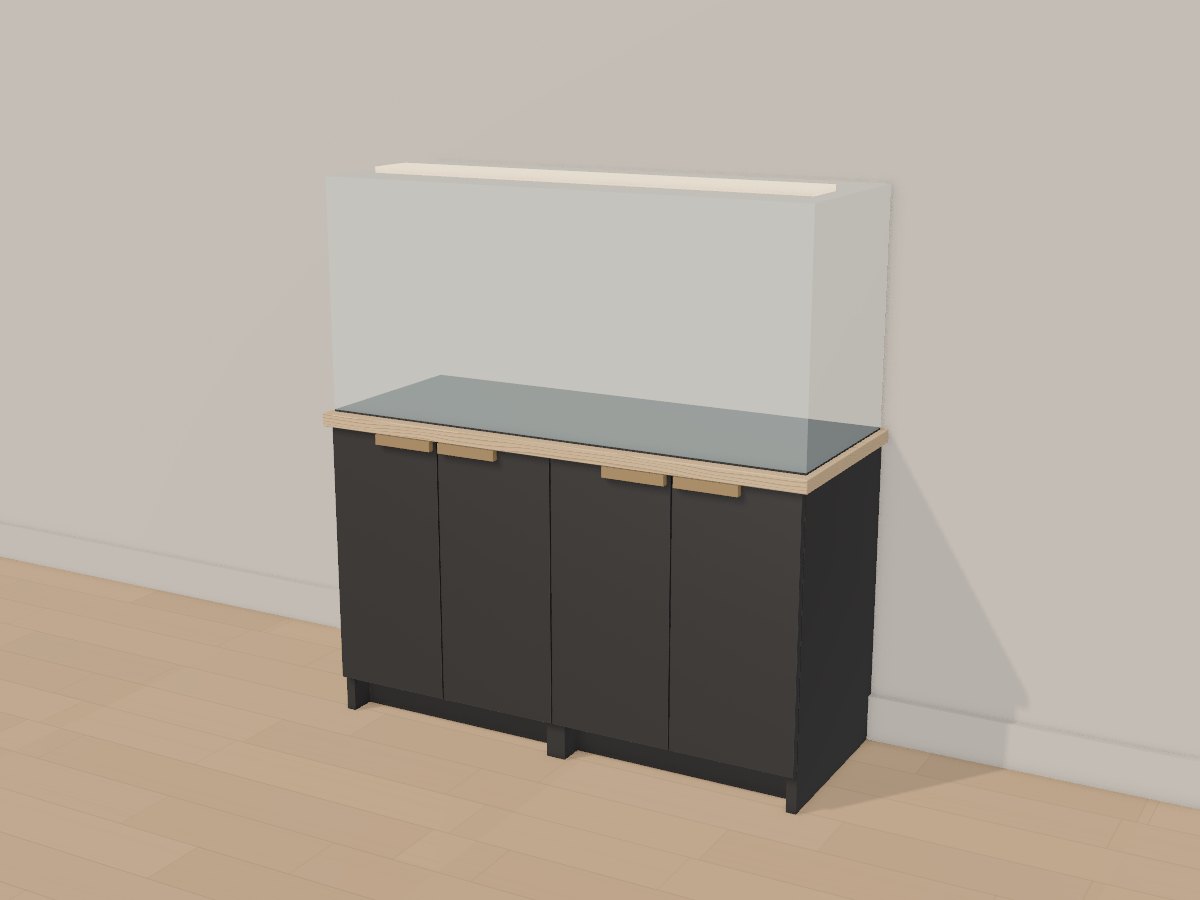

The 3D model
