Kids art desk with paper roll

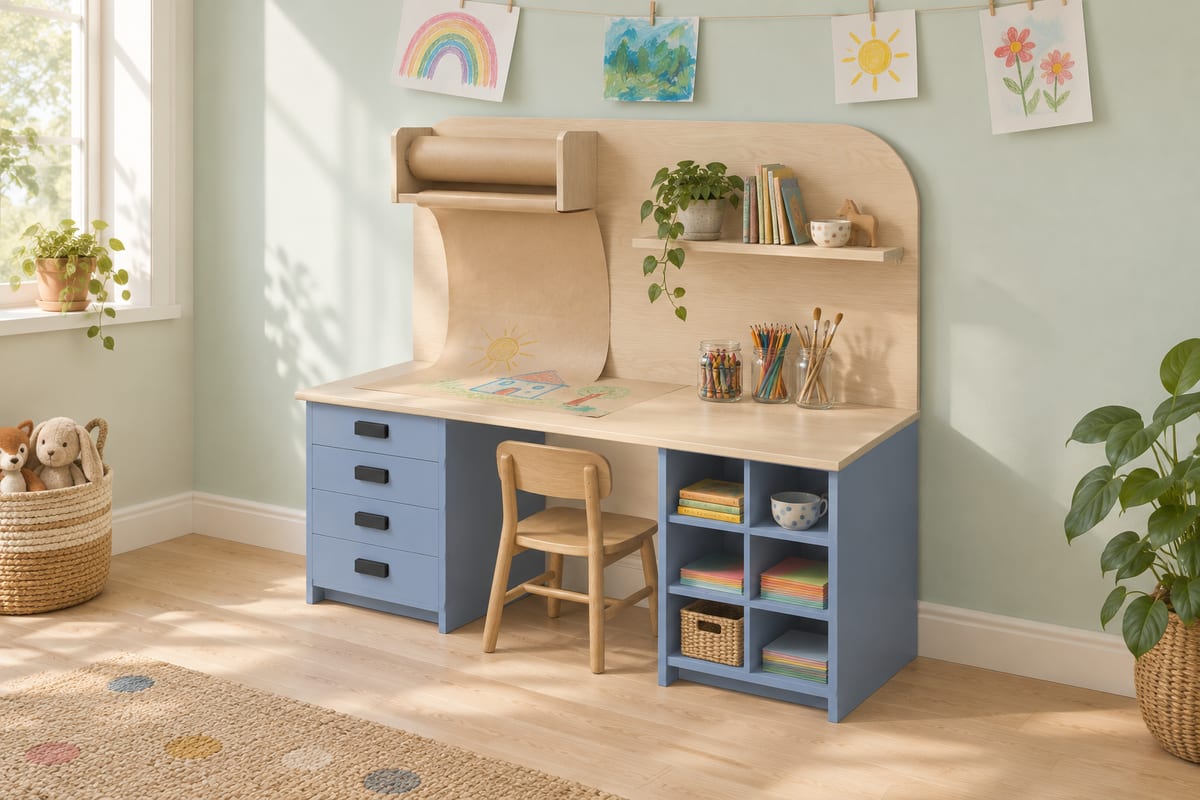

A child-height art desk with a maple top at 560mm: a cornflower-blue pedestal of four shallow flat-file drawers that keep paintings flat, a pedestal of paper cubbies, and a birch upstand with a crayon ledge and a big roll of kraft paper that pulls down over the desk and tears off against a cutting bar. Rounded everywhere, and fixed to the wall.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 1420 x 553 x 1320 mm55 7/8" x 21 3/4" x 51 15/16"
- Parts to cut
- 50
- Build steps
- 62
- Boards
- 3
- Sheets
- 4
- Solid wood
- 8.4 bd ft
- Weight
- 91 kg201 lb
Materials
- Birch plywood
- Hard maple
Finish
- Finishing oil - Hardwax oil, matt, toy-safe
- Clear finish - Water-based clear lacquer, matt, toy-saf
- Paint - cornflower blue, satin
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Table saw
- Sandpaper
- Brush
Hardware and fittings
- 1 x Kraft paper roll, 457mm (18in) wide, on a 25mm hardwood dowel
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
- 8 x Side-mount drawer slide, 450mm
- 4 x Cup pull, 96mm centres, satin nickel
Cut list
The first 3 of 37 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 1 | Upstand | 1400 x 760 x 1855 1/8" x 29 15/16" x 11/16" | Birch plywood |
| B | 1 | Ledge cleat | 700 x 50 x 1827 9/16" x 1 15/16" x 11/16" | Birch plywood |
| C | 1 | Crayon ledge | 700 x 130 x 1827 9/16" x 5 1/8" x 11/16" | Birch plywood |
| +47 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 50 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 62 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

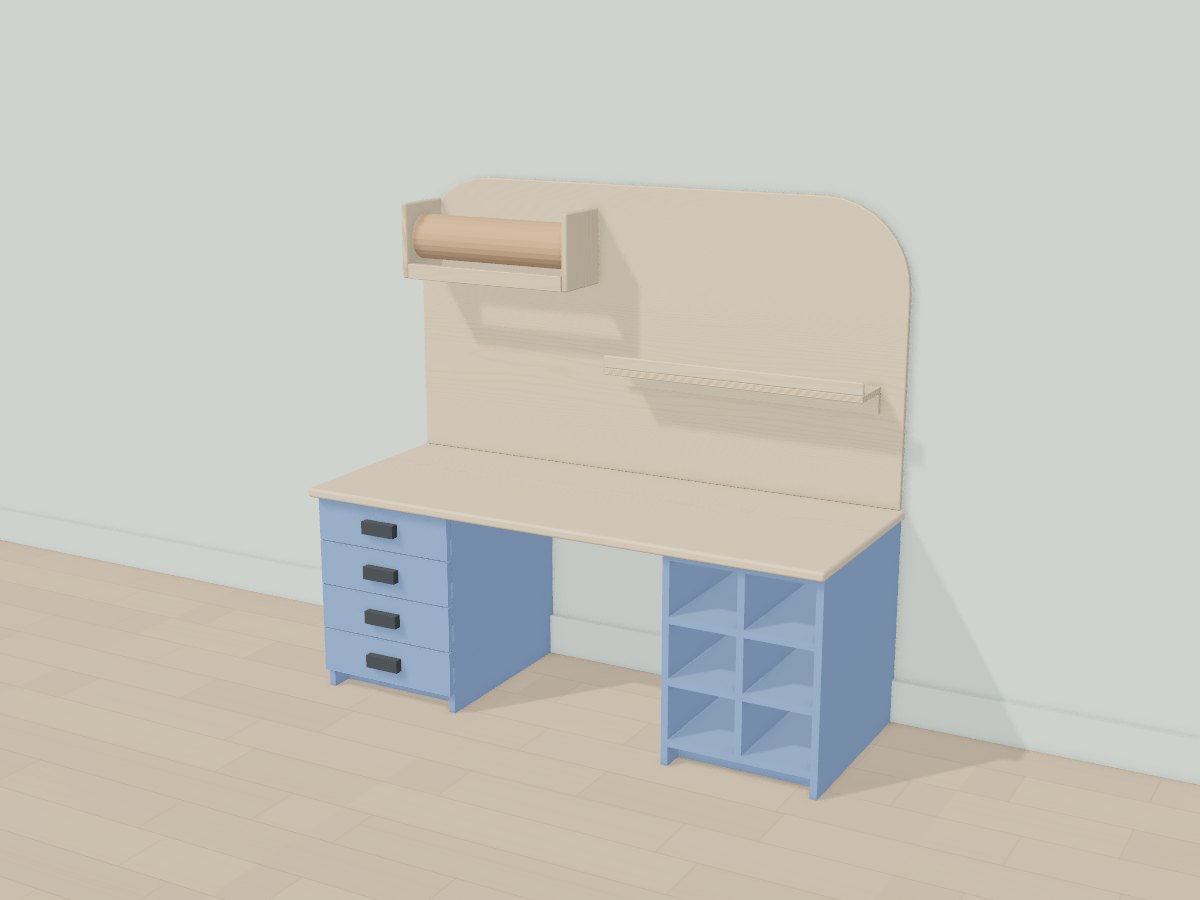

The 3D model
