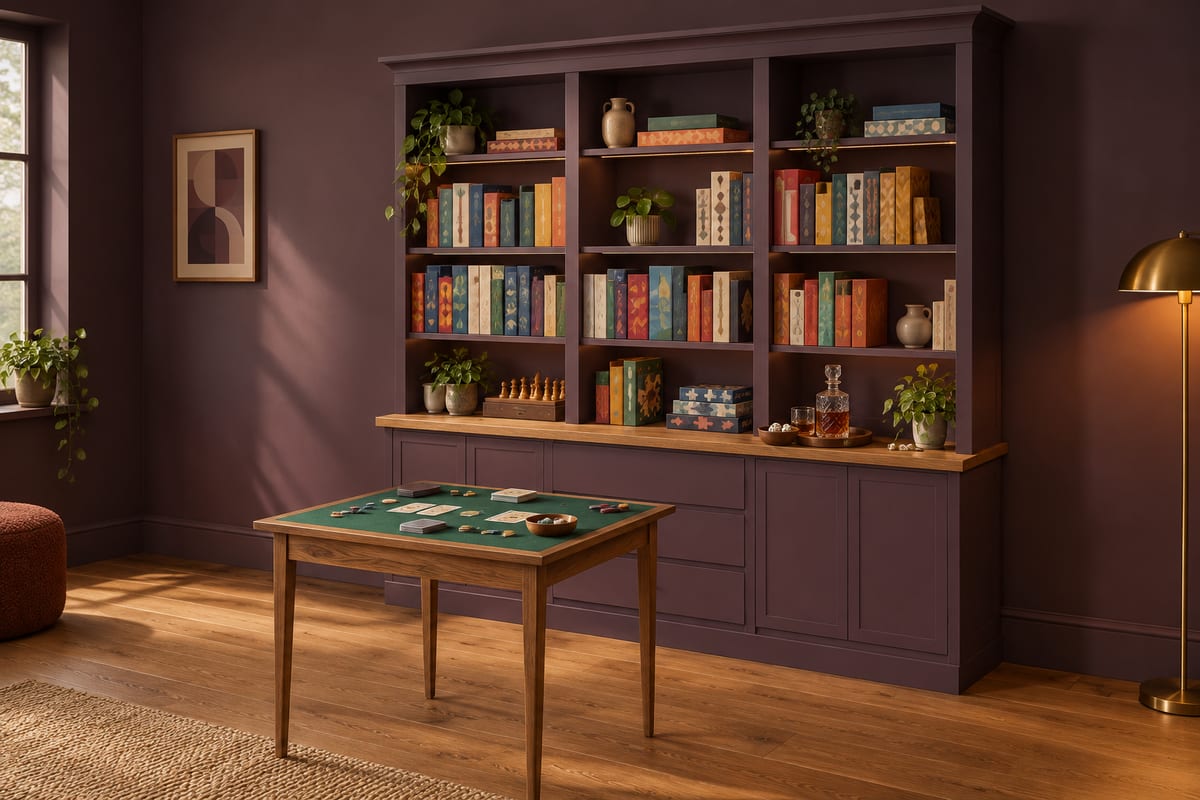

Plum game wall and card table
A game room wall painted deep plum: face-framed shelves lit from above and sized for board game boxes on edge, over shaker cupboards and a drawer bank for cards and dice, under a walnut counter and a cove crown. In front, a square walnut card table with tapered legs and a racing green baize inset.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2526 x 2000 x 2350 mm99 7/16" x 78 3/4" x 92 1/2"
- Parts to cut
- 125
- Build steps
- 85
- Boards
- 16
- Sheets
- 9
- Solid wood
- 44.1 bd ft
- Weight
- 255 kg562 lb
Materials
- Birch plywood
- Poplar (paint grade)
- Black walnut
Finish
- Finishing oil - Hardwax oil, satin
- Paint - deep plum, eggshell
Tools
- Saw
- Square
- Tape
- Chisel
- Clamps
- Router
- Table saw
- Drill
- Pocket-hole jig
- Sandpaper
- Brush
- 10mm bit
- Cable clips
Hardware and fittings
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
- 1 x Card table baize, racing green, with adhesive
- 8 x Concealed face-frame hinge, partial overlay
- 4 x Round knob, 30mm, brushed brass
- 6 x Side-mount drawer slide, 400mm
- 3 x Cup pull, 96mm centres, brushed brass
- 3 x Plug-in LED strip kit, 12V, warm white 2700K
- 1 x Cove crown moulding, 90mm
Cut list
The first 3 of 85 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Games left - Side | 1560 x 315 x 1861 7/16" x 12 3/8" x 11/16" | Birch plywood |
| B | 1 | Games left - Back | 1560 x 800 x 661 7/16" x 31 1/2" x 1/4" | Birch plywood |
| C | 2 | Games centre - Side | 1560 x 315 x 1861 7/16" x 12 3/8" x 11/16" | Birch plywood |
| +120 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 125 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 85 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

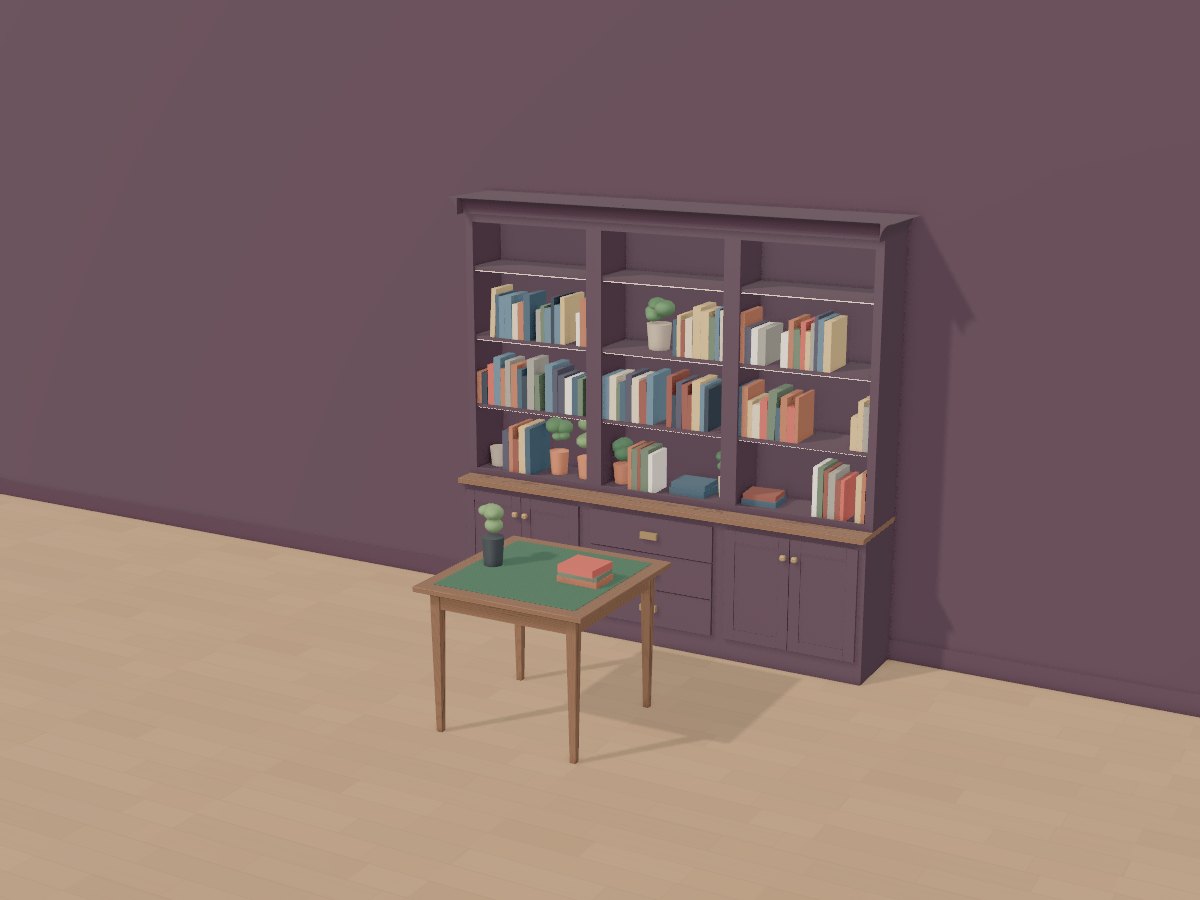

The 3D model
