Oak slat home gym wall

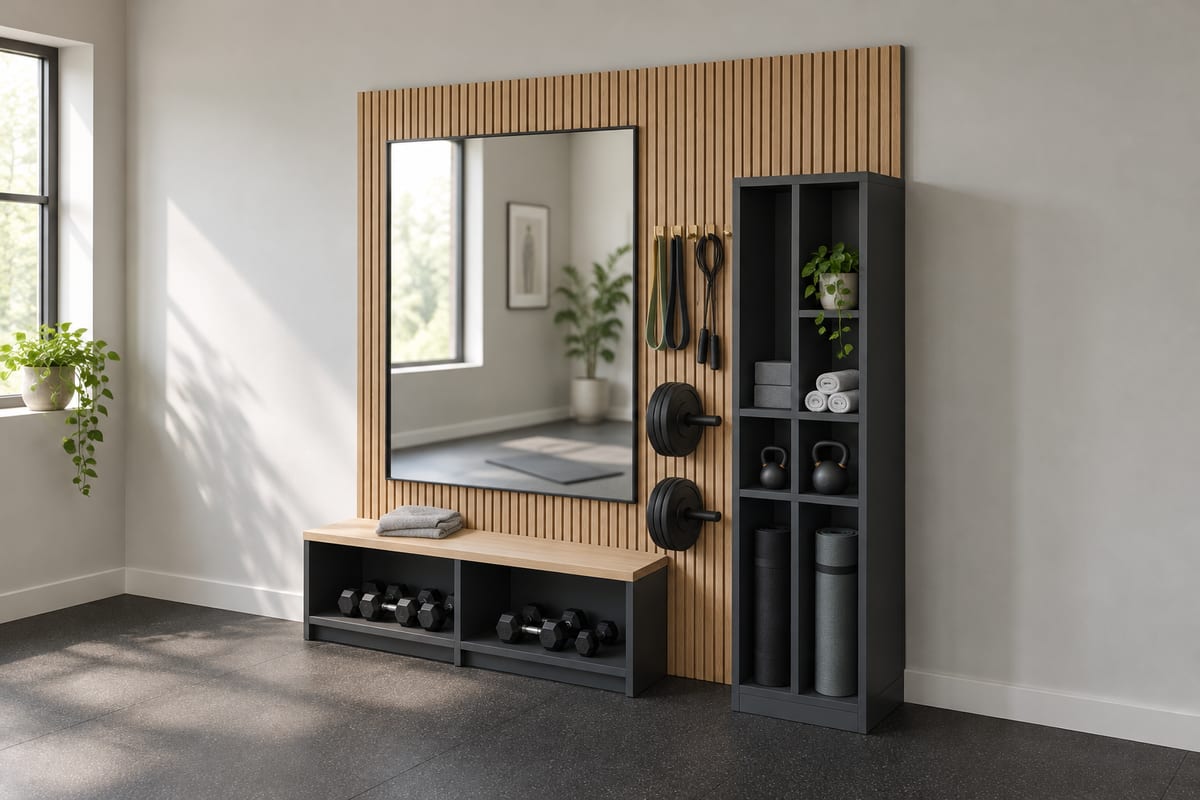

A home gym wall that looks like a calm room: oiled oak slats on a charcoal backer carry a big black-framed mirror, steel plate pegs, a kettlebell shelf and brass hooks for bands, over a charcoal storage bench with a slatted oak seat and lipped dumbbell shelves, beside a tall tower for rolled mats.
Passes Crava's checks for fit, strength and stability. Change any size, the wood or the finish in the app, and it is checked again.
At a glance
- Overall W x D x H
- 2400 x 410 x 2400 mm94 1/2" x 16 1/8" x 94 1/2"
- Parts to cut
- 91
- Build steps
- 50
- Boards
- 68
- Sheets
- 6
- Solid wood
- 46.4 bd ft
- Weight
- 227.4 kg501 lb
Materials
- White oak
- Birch plywood
- Pine (eastern white)
- MDF
Finish
- Paint - charcoal, satin
- Finishing oil - Hardwax oil, matt, matte
- Paint - charcoal, matte
Tools
- Saw
- Square
- Tape
- Router
- Clamps
- Drill
- Sandpaper
- Brush
Hardware and fittings
- 1 x Anti-tip furniture wall bracket, steel, with stud screws
- 4 x Weight plate storage peg, 30mm, black powder coat, 260mm
- 2 x Heavy shelf bracket, black steel, 240mm
- 4 x Double robe hook, brushed brass
- 1 x Safety-backed mirror, 1200 x 1500mm
- 1 x Slim black aluminium mirror frame, 20mm
- 2 x Anti-tip furniture wall bracket, steel, with stud screws
Cut list
The first 3 of 19 lines, in millimetres (inches below), finished size including joint allowances.
| Letter | Qty | Part | L x W x T | Material |
|---|---|---|---|---|
| A | 2 | Tower - Side | 1900 x 354 x 1874 13/16" x 13 15/16" x 11/16" | Birch plywood |
| B | 1 | Tower - Back | 1900 x 500 x 674 13/16" x 19 11/16" x 1/4" | Birch plywood |
| C | 1 | Tower - Divider | 1796 x 354 x 1870 11/16" x 13 15/16" x 11/16" | Birch plywood |
| +87 more parts | ||||
Open this design in Crava to see the full cut list and plans - all 91 parts, cutting diagrams for every board and sheet, a drawing of each part, and the 50 build steps in order.
Open in CravaOpening and changing a design needs no account. The full plans come with a free one.

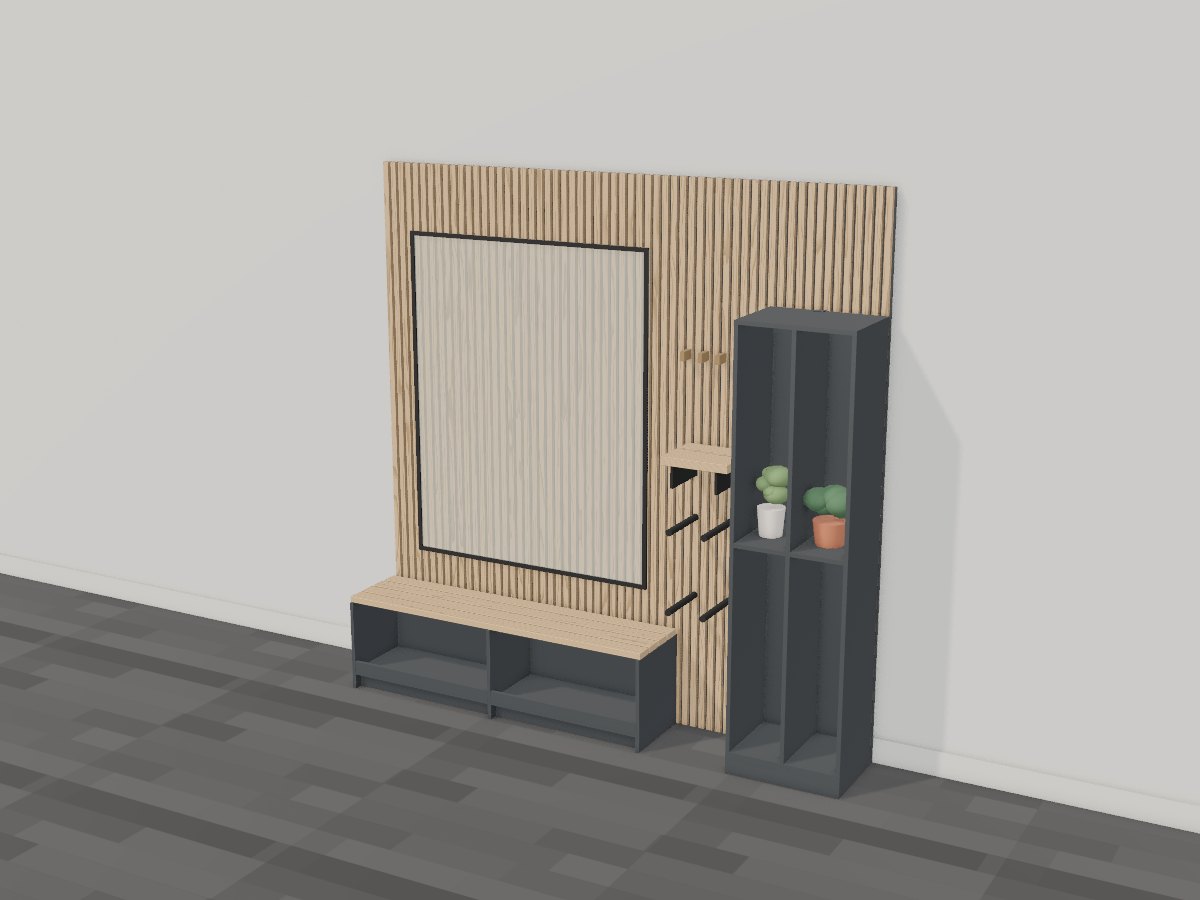

The 3D model
